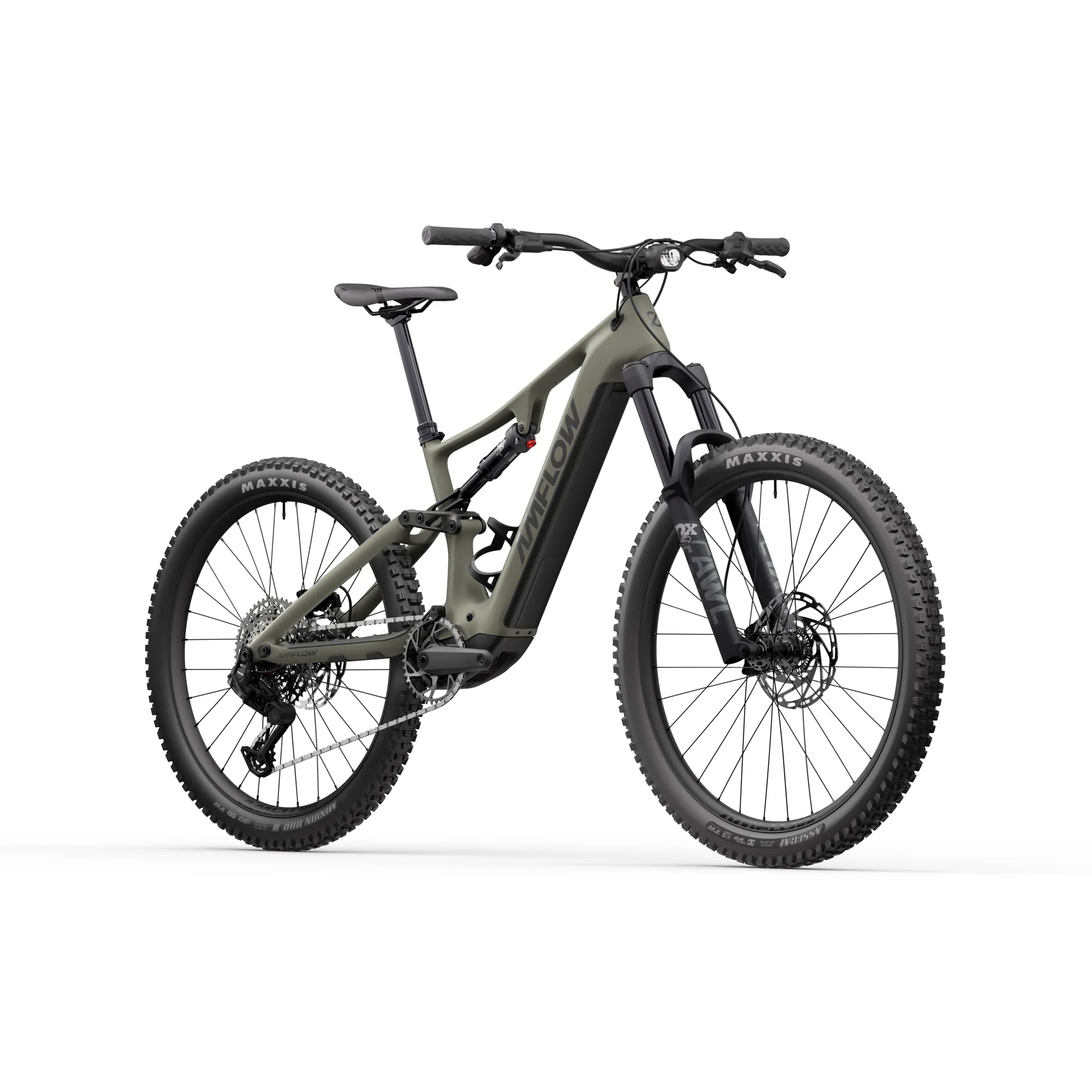

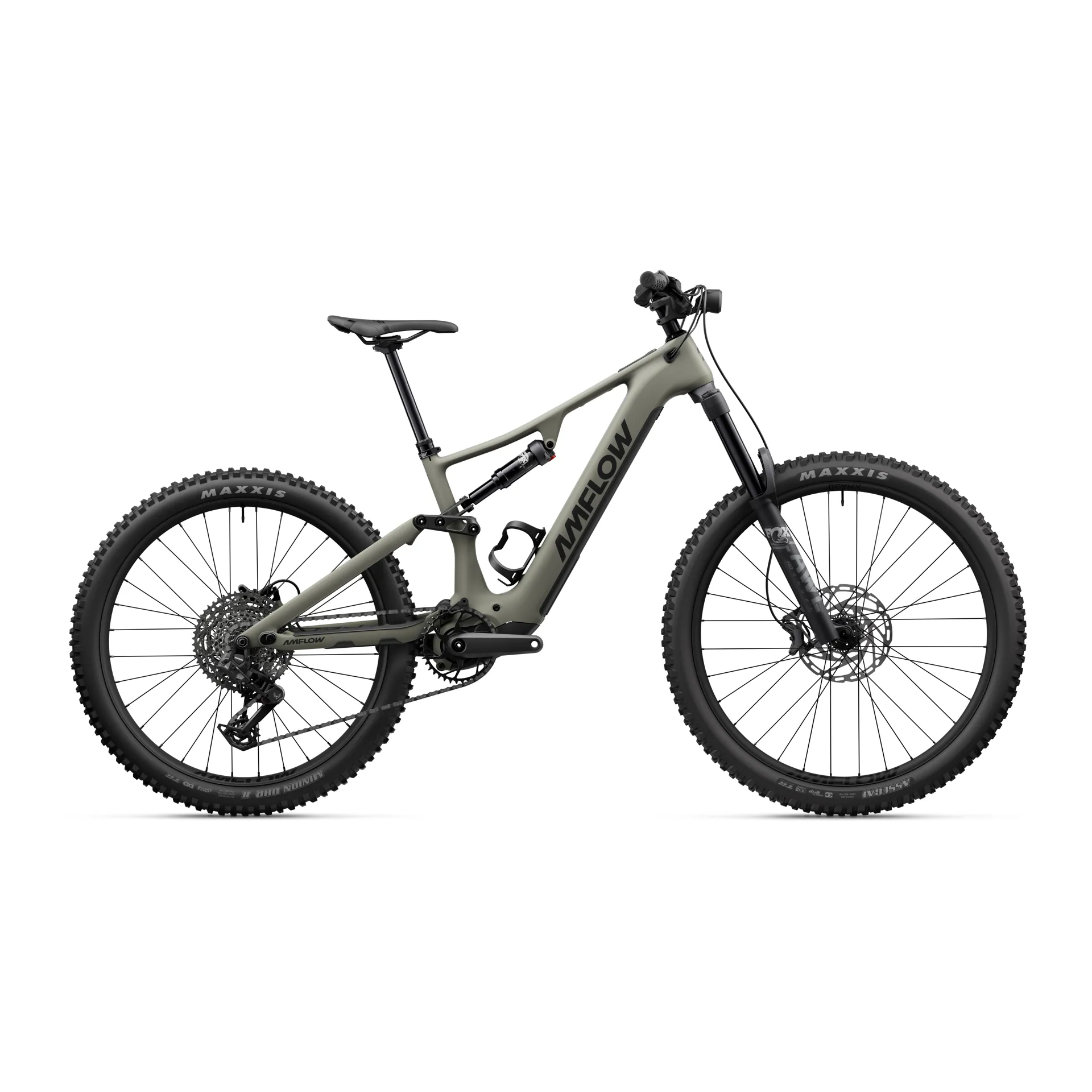

Amflow PR Carbon 2026 Green

Brand:Amflow

Code:CB.202604144

Technical Information

Frame

Amflow PR Carbon Frame

Moss Green

40 adjustable geometry configurations *

Compatible with 27.5″ and 29″ rear wheels

^{* The bike offers 5 headset angle settings, 2 bottom bracket height settings, and 4 chainstay length settings. Users can combine these settings based on different riding styles and terrain conditions. Theoretically, these parameters can form up to 40 geometry configurations. The specific adjustable range and applicable effects are subject to actual usage.}

E-Bike System

Avinox M2 Drive Unit: Nominal 110N·m, peak 125N·m

Avinox Screen: 2-inch OLED Control Display

Avinox Removable Battery: 800Wh

Avinox Wireless Controllers: Right and left sides

Avinox Charger: 4A/168W

Rear shock

FOX Float Rhythm

custom tune, LSR adjustment, 210×55mm, air shock

Fork

FOX AWL HD Sport

160mm travel, RAIL 2.0 damper, Sweep/LSR adjustment, 15×110mm, 44mm offset

Drivetrain

Rear Derailleur: SRAM S1000 Eagle Transmission Derailleur

Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox

Shift Levers: SRAM AXS Pod Controller

Cassette: SRAM XS-1270 Eagle Transmission Cassette 10-52T

Chain: SRAM Eagle 70 Transmission Flattop Chain

Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)

Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

Brakes

Tektro TKD173 Hydraulic Disc Brake, 4-piston calipers, Amflow custom

Tektro Sensor Rotor (203mm, 2.3mm)

Wheels

Amflow XMA-30 Mullet Version

Front Rim: Alloy, 29″, 30mm inner width, 32H, tubeless ready

Rear Rim: Alloy, 27.5″, 30mm inner width, 32H, tubeless ready

Spokes: SAPIM E-Light

Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt

Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG

Tires

Front: Maxxis Assegai, 29.0×2.50 M356RU 3C MaxxGrip/EXO+/TR

Rear: Maxxis DHR II, 27.5×2.50 M327RU New MaxxTerra/DD/TR

Handlebar

Amflow Enduro Alloy Handlebar

40mm Rise, 800mm Width, 35mm Diameter

5-degree upsweep, 9-degree backsweep

Grips

Amflow Enduro Grip 2 Lock-on Grips

Stem

Amflow Mountain Bike Split Stem

Length: 35mm

Clamping Diameter: 35mm

Saddle

Amflow Mountain Saddle

Dropper Post

Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20mm)

M Frame: 190mm

L/XL Frame: 210mm

XXL Frame: 230mm

Accessories

Avinox Front Light

Amflow Bottle Cage

Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip)

Removable Battery Keys × 2

5/10mm Dropper Post Travel Reducing Spacer

Quick Start Guide

Rear Light

Torque Wrench

Clear Frame Protection Film

Shock Pump

Sizing Information

Size	Height (cm)	Height (inch)
M	160 - 176	5'3 - 5'9''
L	168 - 183	5'6 - 6'0''
XL	173 - 189	5'8 - 6'2''
XXL	183 - 199	6'0 - 6'6''

Geometry

		M	L	XL	XXL
A	Reach	452mm	475mm	500mm	527mm
B	Stack Height	626mm	637mm	649mm	662mm
C	Standover Height	782.5mm	788.9mm	791.5mm	799.1mm
D	Front Center	787.7mm	816mm	846.8mm	879.9mm
E	Fork Length	576mm	576mm	576mm	576mm
F	Wheelbase	1227.9mm	1256.2mm	1287mm	1320.1mm
G	Chainstay Length	440/452mm	440/452mm	440/452mm	440/452mm
H	Bottom Bracket Drop	10.4/24.5mm	10.4/24.5mm	10.4/24.5mm	10.4/24.5mm
I	Bottom Bracket Height	349.5mm	349.5mm	349.5mm	349.5mm
J	Effective Top Tube Length	596.5mm	623.5mm	652.9mm	684.6mm
K	Head Tube Angle	64.5°	64.5°	64.5°	64.5°
L	Head Tube Length	111.4mm	123.6mm	136.9mm	151.3mm
M	Actual Seat Tube Angle	70°	70°	70°	70°
N	Effective Seat Tube Angle	77°	76.9°	76.7°	76.6°
O	Seat Tube Height	405mm	425.3mm	445mm	464mm
