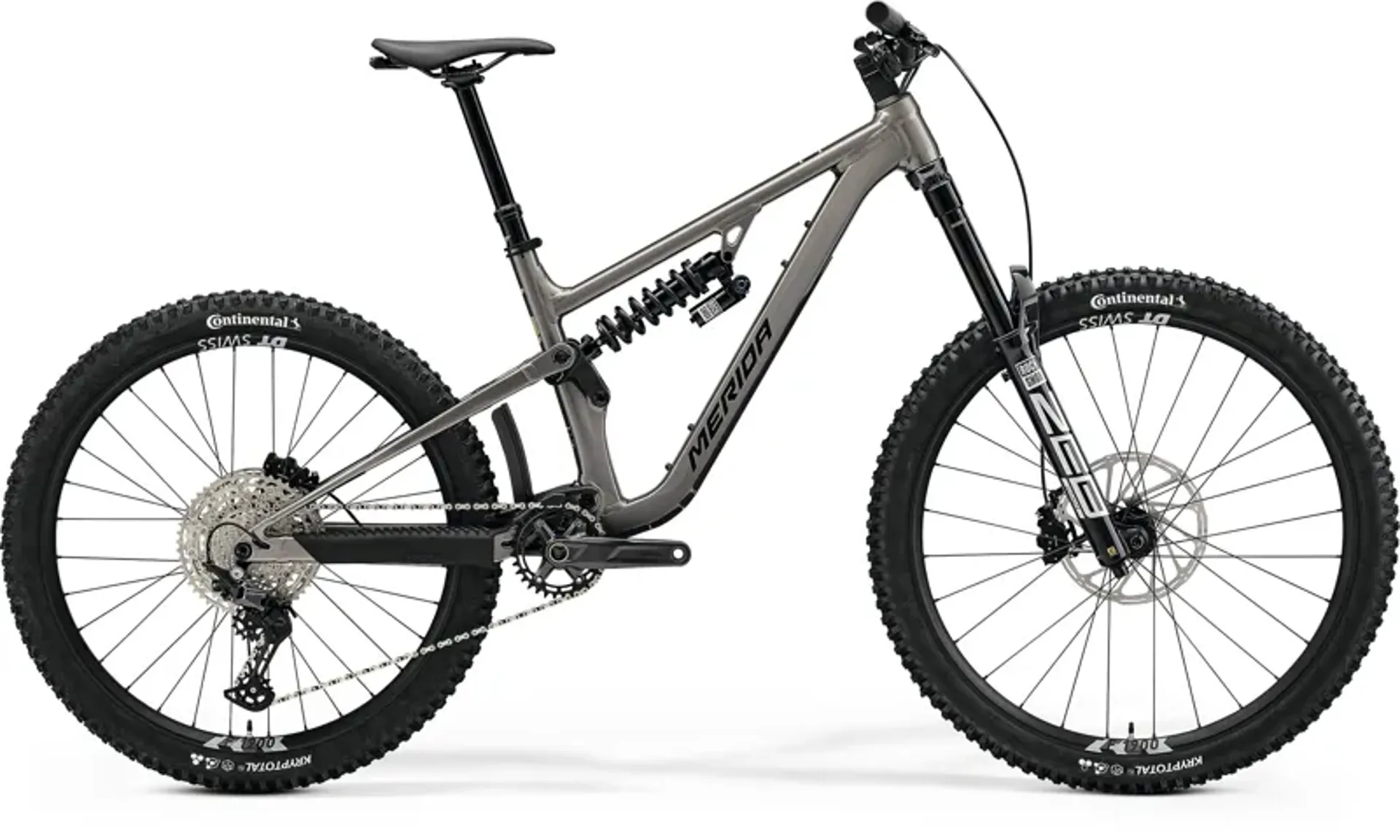

Merida One-Sixty FR 800 Mountain Bike in Warm Slate Grey/Black

Season:2026

Brand:Merida

Code:P-R028

Hard-hitting and ready to rock. The ONE-SIXTY FR 800 takes Merida's award-winning aluminium enduro frame and pumps up the attitude for hard riders and bike park heavy hitters. Mixed-size DT Swiss wheels deliver fun handling and bombproof reliability, while the assured performance of a RockShox Zeb Ultimate 180 mm fork and Vivid Ultimate Coil shock at the rear are all controlled by their FAST kinematic suspension so you can send hard, run after run. Quality suspension needs quality brakes, so SRAM's Maven stoppers can haul you up fast, while Shimano's dependable Deore does drivetrain duties.

The ONE-SIXTY FR builds on the solid platform of Merida's award-winning ONE-SIXTY, but cranks the volume up. It's built tough so that you can hit the bike park all day long, or just rip the toughest tracks and trails time after time, safe in the knowledge that the bike won't let you down. To boost the capability, they've added in longer travel forks pushing out 180 mm travel paired with coil shocks delivering 171 mm of rear wheel travel, mounted on their tough aluminium chassis. All bikes run a mixed 29" front and 27.5" rear wheel size for maximum manoeuvrability, whether you're ripping turns or sending it hard. However, you can switch to a full 29er setup without impacting the geometry, thanks to the flip-chip system. Merida's AGILOMETER sizing allows riders to run a longer or shorter reach frame independently of their height. At the same time, the suspension becomes more progressive as you size up, and all bikes are fitted with long-travel dropper posts.

Features:

  • Full aluminium frame with FAST kinematic suspension and progressive geometry
  • Mixed 29/27.5" wheels for maximum agility
  • RockShox Zeb Ultimate fork and Vivid Ultimate Coil rear shock
  • Tough DT Swiss F1900 wheelset paired with Continental Kryptotal tyres with Enduro front casing and Downhill rear
  • Adjustable travel 230-30 mm dropper post
  • Powerful SRAM Maven 4-piston hydraulic disc brakes
Technical Information
  • Frame
    ONE-SIXTY LITE III 171mm suspension travel mullet material: aluminium 29x2.5" max. wheelsize 148x12mm axle standard BSA bottom bracket standard
  • Frame size
    XShort, Short, Mid, Long, XLong
  • Fork
    Rock Shox Zeb Ultimate Air 180mm suspension travel 44mm offset 29x2.6" max. wheelsize
  • Shock
    Rock Shox Vivid coil lockout spring rate: XSHORT 300 lbs SHORT:350 lbs MID:400 LONG: 450 lbs XLONG: 500 lbs
  • Brakes
    Sram Maven 4 piston
  • Rotors
    Sram CenterLine 220mm 200mm
  • Headset
    Acros ICR MERIDA EXTERNAL neck Upper and lower IPS sealing
  • Handlebar
    MERIDA EXPERT TR II material: aluminium 780mm width 30mm rise
  • Handlebar stem
    MERIDA EXPERT eTRII material: aluminium 35mm diameter 0° stem angle 40 mm
  • Grip
    MERIDA EXPERT TR recycled material
  • Derailleur (r)
    Shimano Deore M6100 SGS
  • Shifters
    Sram dropper lever MMX / Shimano Deore M6100
  • Seat post
    MERIDA EXPERT TR III 34.9mm diameter 0mm setback 25mm travel adjustability XSHORT: 170mm, SHORT/MID: 200mm, LONG/XLONG: 230mm
  • Seat clamp
    MERIDA EXPERT
  • Saddle
    MERIDA COMP SL 25% recycled material V-mount
  • Chain
    KMC X12
  • Chainguard
    MERIDA EXPERT TR ISCG05
  • Crank
    Shimano Deore MT512 32 teeth 165 mm for all sizes
  • Freewheel
    Shimano Deore M6100 10-51 teeth 12 speed
  • Bottom bracket
    Shimano BB-MT-501 24mm
  • Wheelset
    DT Swiss F 1900 110x15mm width front hub 148x12mm width rear hub 30mm inner width material: aluminium Tubeless ready (tubeless tape and valves included) front 29" rear 27.5"
  • Tyre front
    Continental Kryptotal-F 29x2.4" fold TR Enduro casing Soft Compund
  • Tyre rear
    Continental Kryptotal-R 27.5x2.4" fold TR Downhill Casing Soft Compound
  • Axles
    MERIDA EXPERT TR including removeable lever, 6/4mm allen key
  • Spokes
    Double Butted Black stainless w/black nipples
  • Approx. weight
    17.9 kg weighed at frame size M
