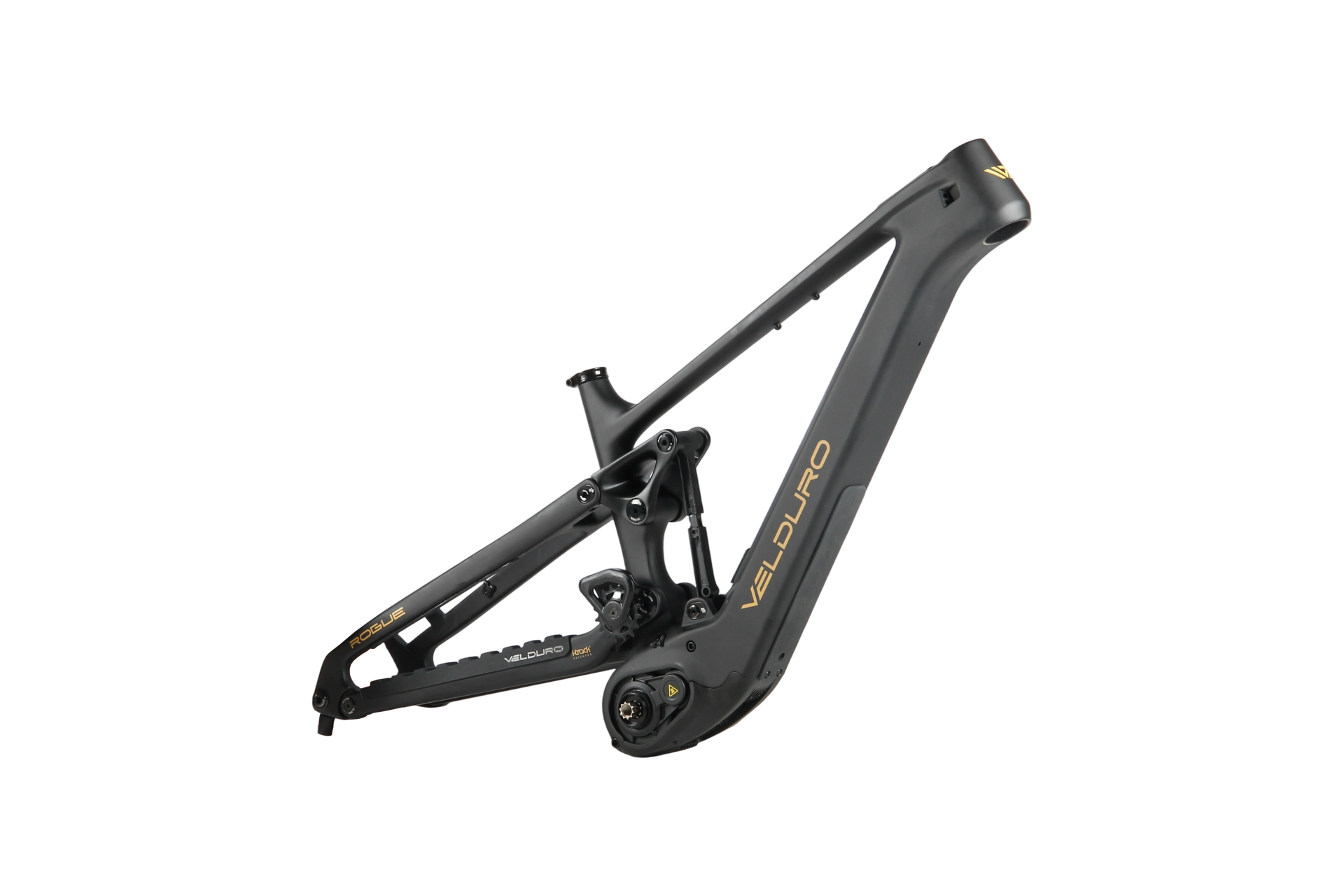

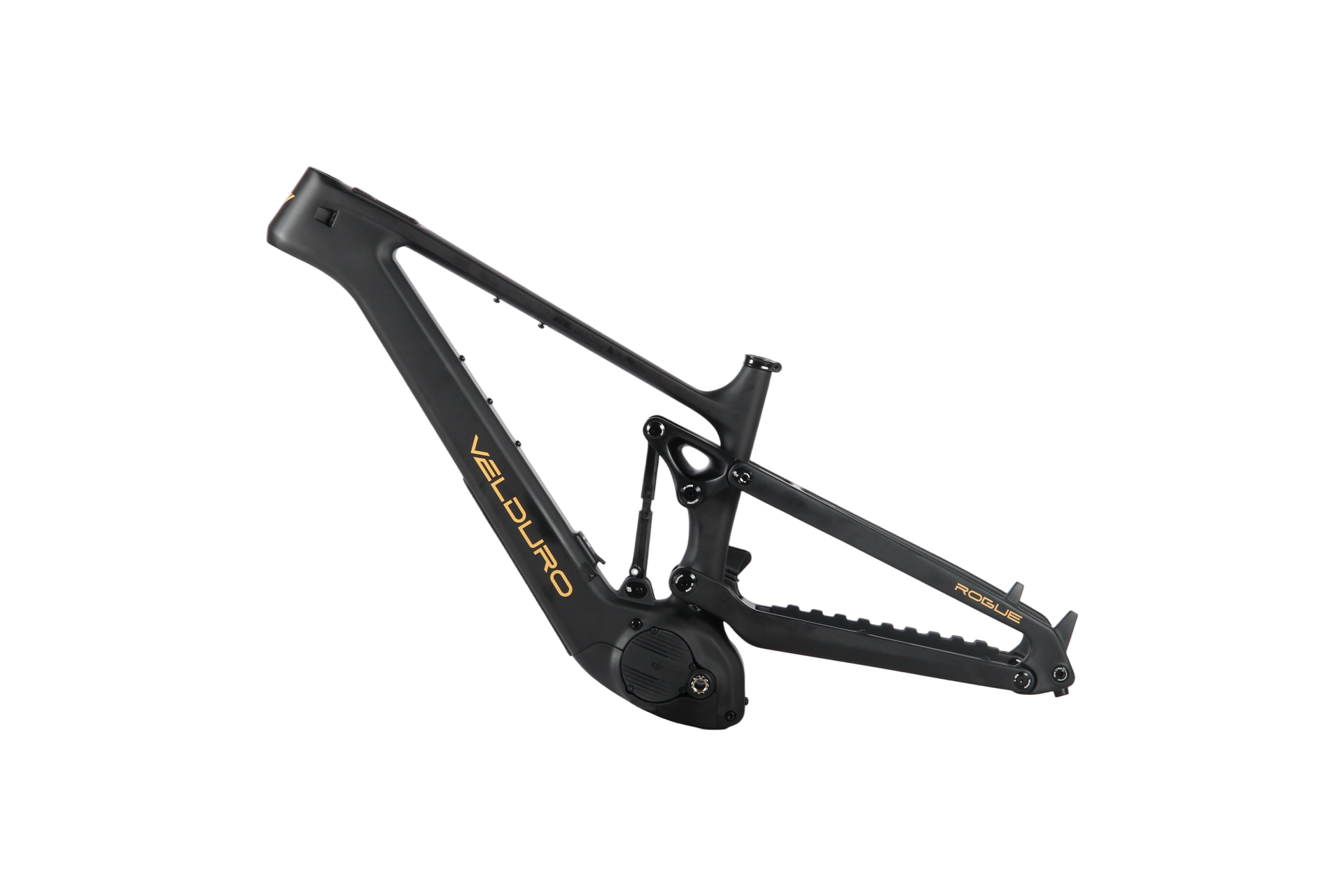

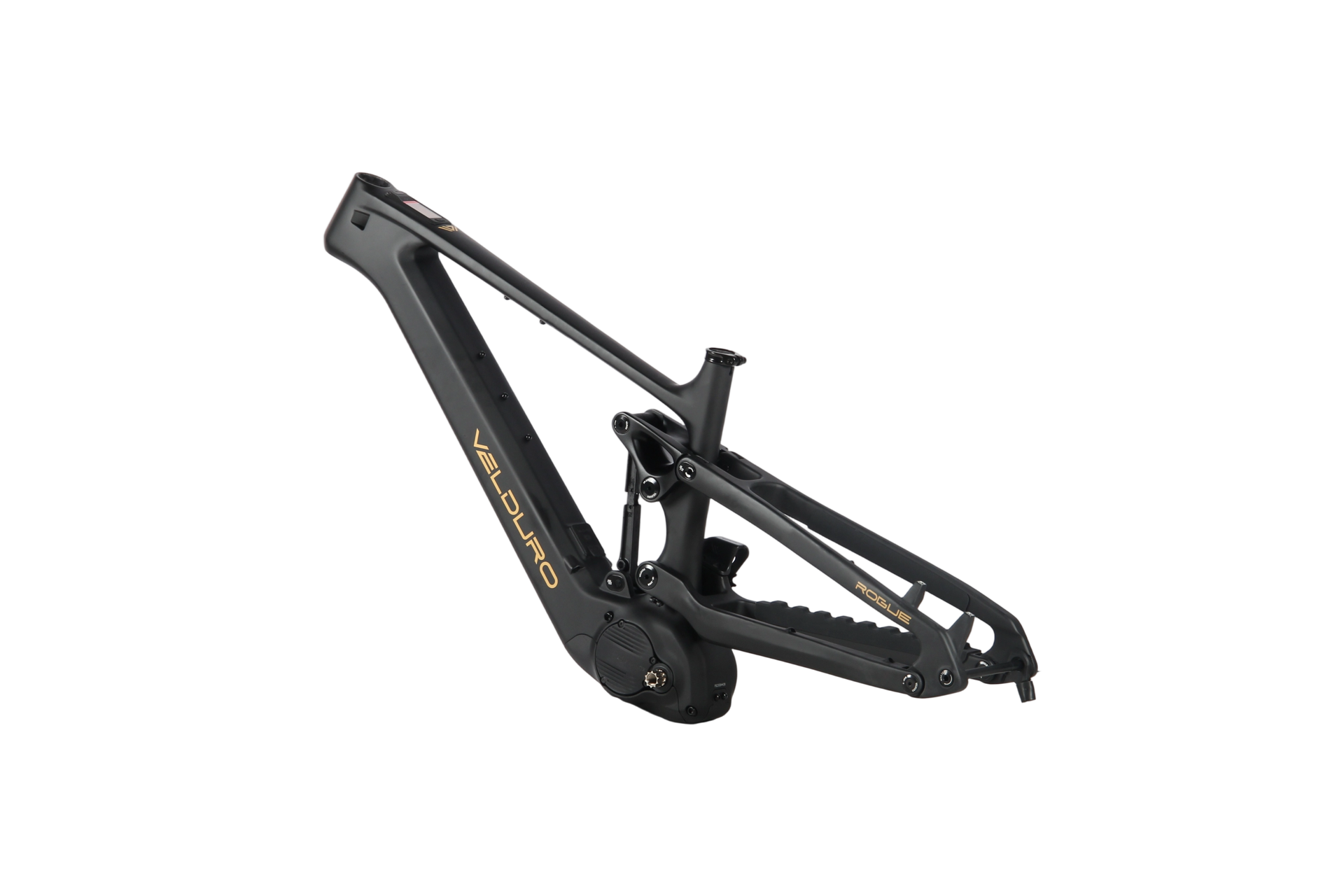

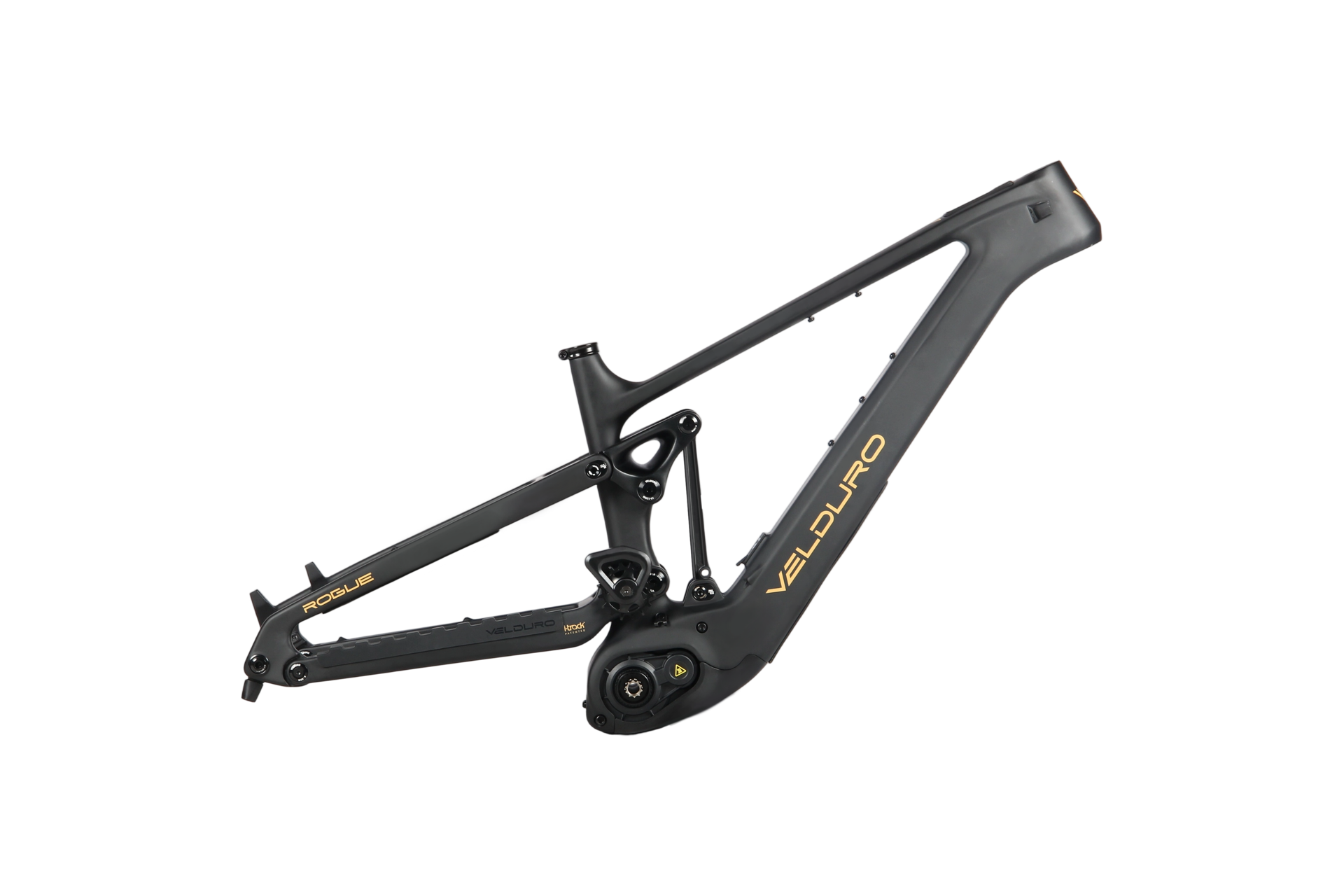

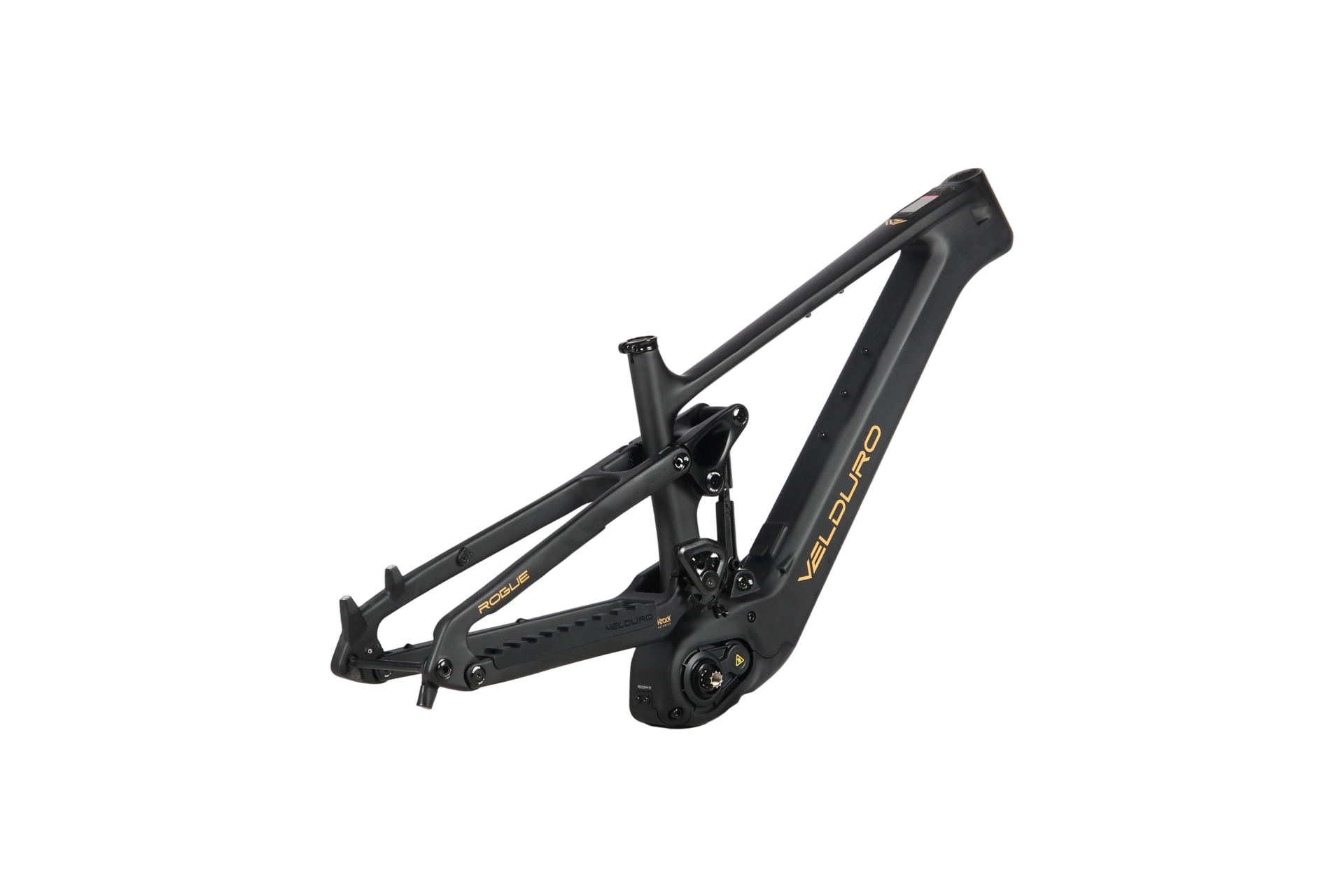

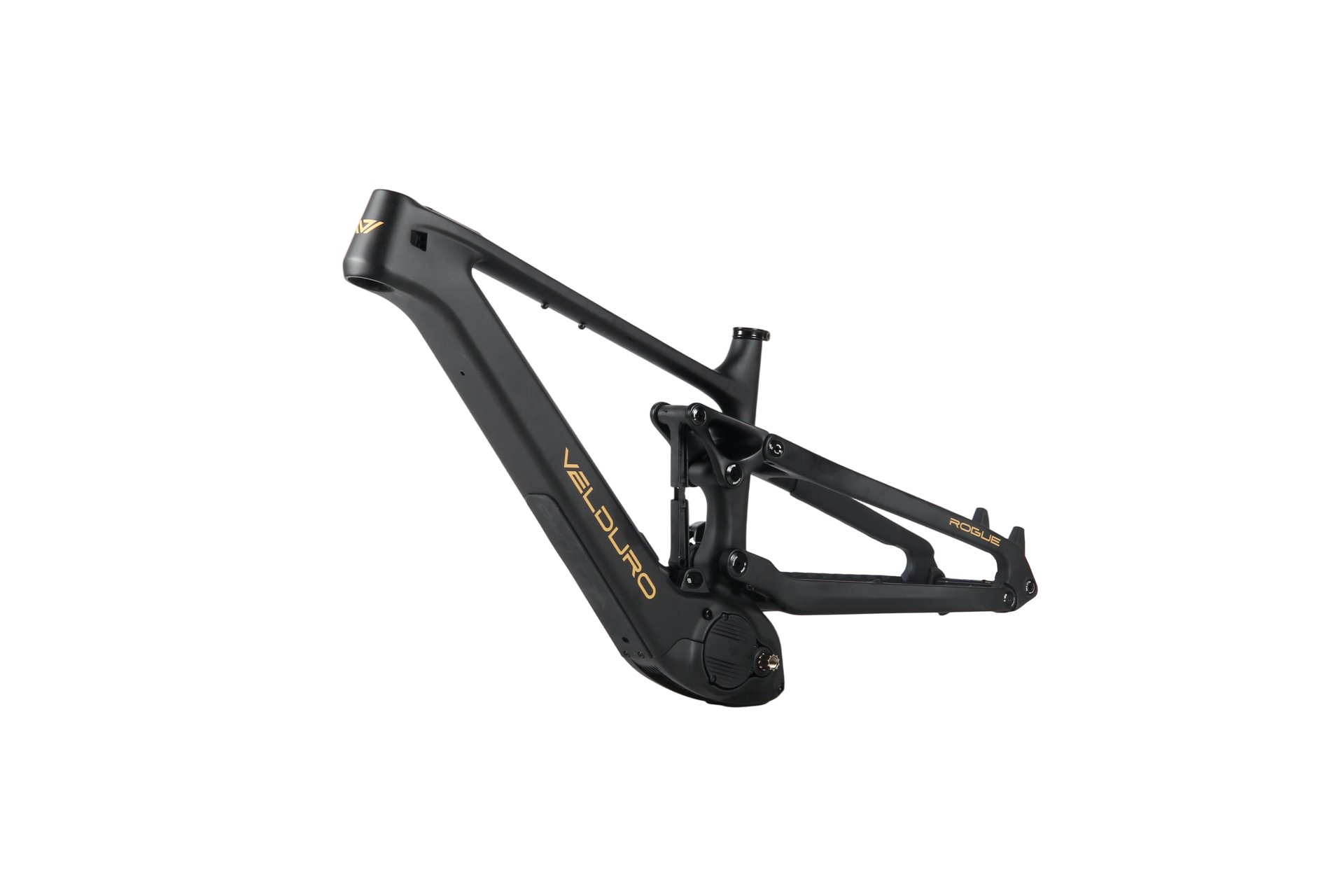

Velduro Rogue Electric MTB Frame Only No Shock

Season:2025

Brand:Velduro

Code:ROFMBAA25

Build your dream Avinox powered EMTB with Velduro. The Rogue's modular frame has been designed to adapt to your needs and riding style with the easiest of adjustments. Adjust the travel, tweak the geo or switch wheel sizes (29er or mixed) and customise your ride to create your Ultimate Dream Build. In Standard Mode (170mm fork / 165mm rear), it's a trail-taming weapon. Switch to All-Mountain Mode (160mm front/rear) for flowy, high speed precision, or unleash Full Enduro Mode (180mm front / 170mm rear) to conquer anything you can throw at it.

At its core is the customisableDJI Avinox drive system, delivering smooth, intuitive power through an integrated800Wh battery, giving you the freedom to ride harder and further than ever.

Technical Information

pecifications

Frame only, includes frame, motor and battery - no shock.

Headset Specs

External wired headset, dia top 44mm bottom 56mm

Suspension Measurements

  • Fork: 1.5T, 160-180mm travel single crown fork suitable, 170mm as suggest, Double crown fork, not suitable
  • Shock: Trunnion shock only, eye to eye 205mm, bottom bushing as M8*30mm, 65mm travel as recommended for 165/172mm rear travel, 62.5mm travel for 160/165mm rear travel.

Seatpost Measurements

  • Dia 31.6mm, insert depth S: 260mm, M:280mm,L:300mm ,XL: 325mm
  • Recommended dropper travel: S:180mm, M&L: 210mm, XL: 240mm
  • Dropper cable length: 1200mm

Drive System Specs

  • Frame rear brake post mount 200mm directly
  • Front brake mount depends on your fork
  • Front brake cable 950mm
  • Rear brake cable 1700mm

Drive System Specs

  • Chainwheel: 104BCD, Max to 34T
  • Crank: Length up to 165mm, min offset:25mm
  • UDH derailleur suitable
    1x shifting only
  • Shimano and SRAM compatible
  • E-shift and manual shift compatible
  • Manual shift cable length 2000mm

Wheel Set Compatibility

  • Front hub: depends on the fork, normally 15x110mm
  • Rear hub: 12x148 Boost
  • Front rim: 29inch (700C)
  • Rear rim:29inch(700C) and 27.5inch(650B) compatible
  • Front tire: 29x2.5 recommended, max to 2.6
  • Rear tire: 29x2.4/27.5x2.4 recommended, max to 2.6
Sizing Information
SMLXL
AEff. Seattube Length (mm)390410430465
BHeadtube Angle (°)63.563.563.563.5
CEff. Toptube Length (mm)573.6599.6623.9652
DReach (mm)440466485515
EAct. Seattube Angle (°)75.575.575.575.5
FSeattube Offset (mm)30303030
GEff. Seattube Angle (°)78.178.17877.9
HChainstay Length (mm)440440440440
IBB Drop at Rear Wheel (mm)12121212
JBB Drop at Front Wheel (mm)31313131
KHeadtube Length (mm)110110120125
LAxle to Crown (mm)584584584584
MFork Offset (mm)44444444
NTrail (mm)140.1140.1140.1140.1
OStack (mm)632.5632.5641.4645.9
PWheelbase (mm)1230126513001335
Recommended Height (CM)160-172172-182180-188185-195
