Replace your OEM handlebar mount with our Bosch Intuvia E-Stem 100. Keeping your cockpit neat and display safe.
Replace your OEM handlebar mount with our Bosch Intuvia E-Stem 100. Keeping your cockpit neat and display safe.
Bosch

Bosch Intuvia E-Stem 100

£14.99
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

....

RETURNS FREQUENTLY ASKED QUESTIONS

Please refer to TERMS AND CONDITIONS for full policy.

Can I return an unwanted item?

We feel that you should be totally satisfied with your purchase from True North Cycle Hub, If, however, you wish to return an item as unwanted you can return it within 14 days from the date you receive the product. Please note that we require you to contact us by email and quote your invoice/receipt number and reasons for return prior to sending the item back. Please see below for important details on the condition of an unwanted item return.

The cost of the item will be refunded, but any initial delivery costs will not be refunded. Return costs are payable by customer, also see courier collections.

Condition of return.

If you want to return an unwanted item, the item must be as priority unused, in its original condition and suitable for resale (the items must be in an “as new” condition and in the original packaging including labels, stickers, additional accessories etc.). If reasonable care has not been taken of the item prior to our receipt, resulting in damage or deterioration of the goods or packaging then a charge will be applied for the reduction in value. The item must be accompanied by the invoice/receipt with details of the reason for return stated. You are responsible for the item until it reaches us; we, therefore, suggest that you use a secure method of delivery e.g. signed delivery. The customer is responsible for any delivery charges incurred for the return of an unwanted item. Remember, all packaging must be undamaged so please do not tape up packaging or write on it as this will make it unacceptable, this particularly applies to any boxed item, the box must not be used as external packaging!

Incorrectly delivered items.

Should in the unlikely event that we send a wrong item we will, at our expense, arrange a collection or supply a pre paid postage label to enable you to return the incorrect item to us. Once we have received the item back we will issue you a replacement item.

Damaged in transit.

Please check your purchase upon arrival. If you notice any damage to the packaging please sign for it as damaged and notify us within 24 hours. Please email to info@truenorthcyclehub.co.uk photographs and description of the damage. Once accepted we will arrange a collection or supply a pre paid postage label to you to enable you to return the damaged item. Once we have received the item back we will issue you a replacement item should a replacement be available.

When will I receive a refund?

The customer can expect to receive the refund of the cost for the item within two weeks of us receiving the item (assuming satisfaction with the condition of the product).

For information on how to process a WARRANTY CLAIM please refer to our WARRANTY POLICY.

Bosch Intuvia E-Stem 100

Brand:Bosch

Code:INTEStem100

Our new and latest design for the E-Stems this time is to suit the Bosch Intuvia 100 Display.

The Bosch Intuvia E-Stem 100 fixes directly into the stem cap using your original display mount which would fit to the handlebar mount. If you are upgrading your bike to the Intuvia 100 and don't have the original display mount this would also need to be purchased. This Mount gives a more centralised mount position which is neater, tidier and less exposed. With a pivot base, it allows you to adjust the angle display position to your preference.

Easy to fit and designed with the same attention to detail, testing andn high quality materials as our other models.
Technical Information

Many ebike manufacturers have used a handlebar clamp methodology to site the Bosch Intuvia 100 display. Some riders find this quite a vulnerable position for the display, especially in the unfortunate case of an O.T.B.

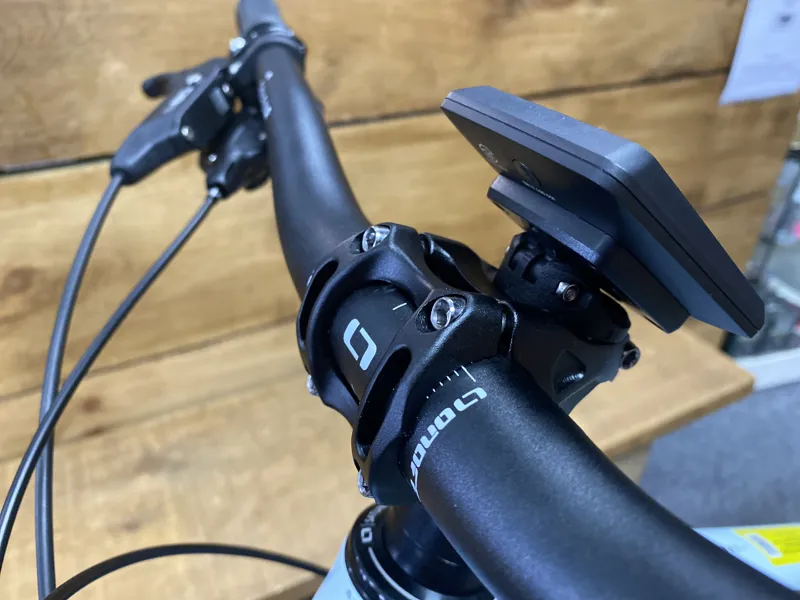

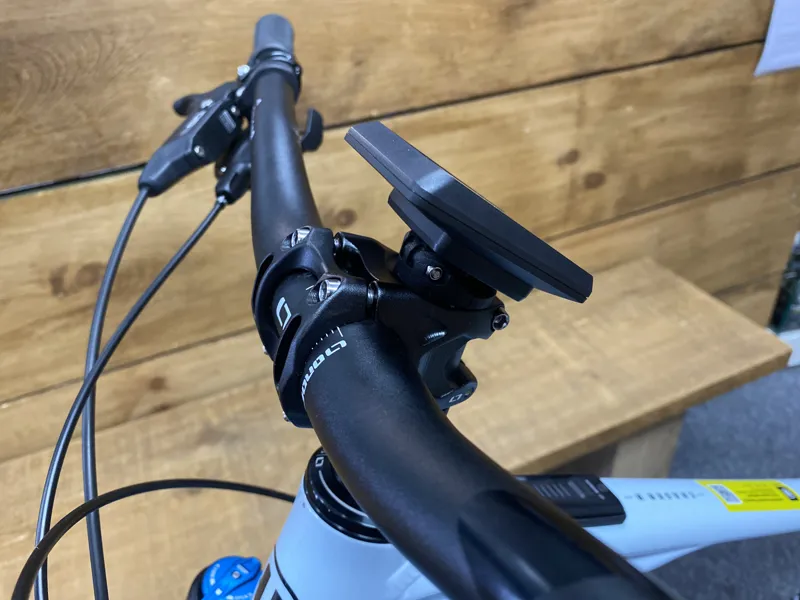

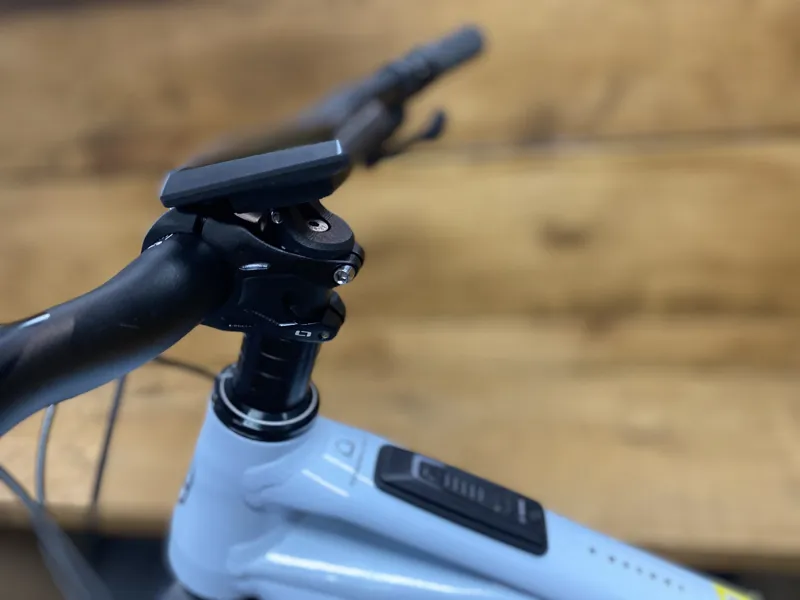

The Bosch Intuvia E-Stem 100 fixes directly into the stem cap, and comes with mount and stem bolt. Allowing the display position to be centrally mounted. It looks much neater and tidier on your ebike. But, also less exposed.

It’s not designed to be bike brand specific. It’s designed purely for the Bosch Intuvia 100 display. So regardless of ebike the Bosch Intuvia E-Stem 100 will work with any new Bosch Smart System motor and Intuvia 100 display.

We’ve teamed up again with Andrew Magnier from MagCAD. who designed our Bosch E-Stem 300 for the Kiox display. Same level of design, testing and quality.

Sizing Information
Professional Opinion

Removing and separating the Bosch Intuvia 100 interface:

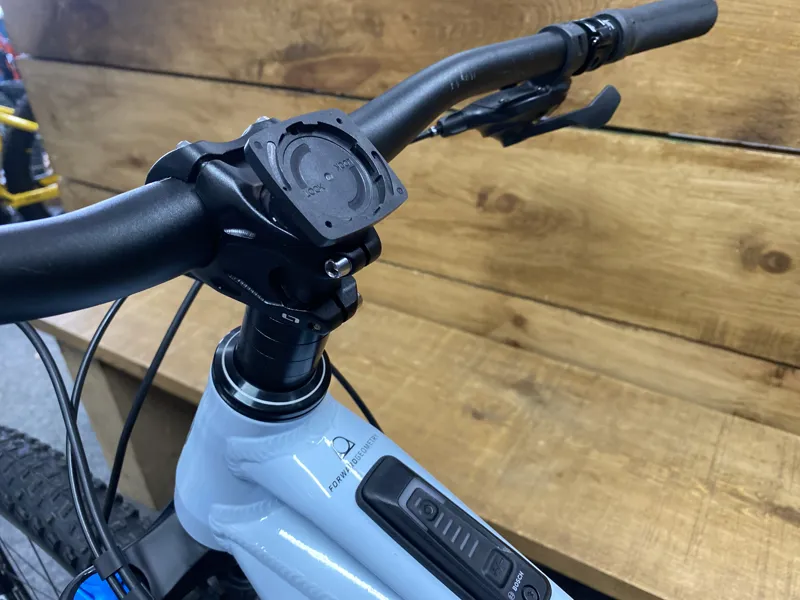

  1. Remove the Bosch Intuvia 100 display from the OEM handlebar mount with a quarter turn counter-clockwise.
  2. Remove the OEM handlebar mount from your bike by loosening and removing the securing screw.
  3. Separate the Bosch Intuvia 100 interface from the OEM handlebar mount by loosening and remove the screw in the end of the mount.
  4. The OEM handlebar mount is no longer required. The Bosch Intuvia 100 interface will be attached to the E-Stem 100

Fitting the E-Stem 100:

  1. Loosen your stem top cap bolt, typically with a 5mm allen key. You do not need to loosen the stem bolts that secure your stem to the fork steerer.
  2. Remove the stem top cap and bolt, these are no longer required.

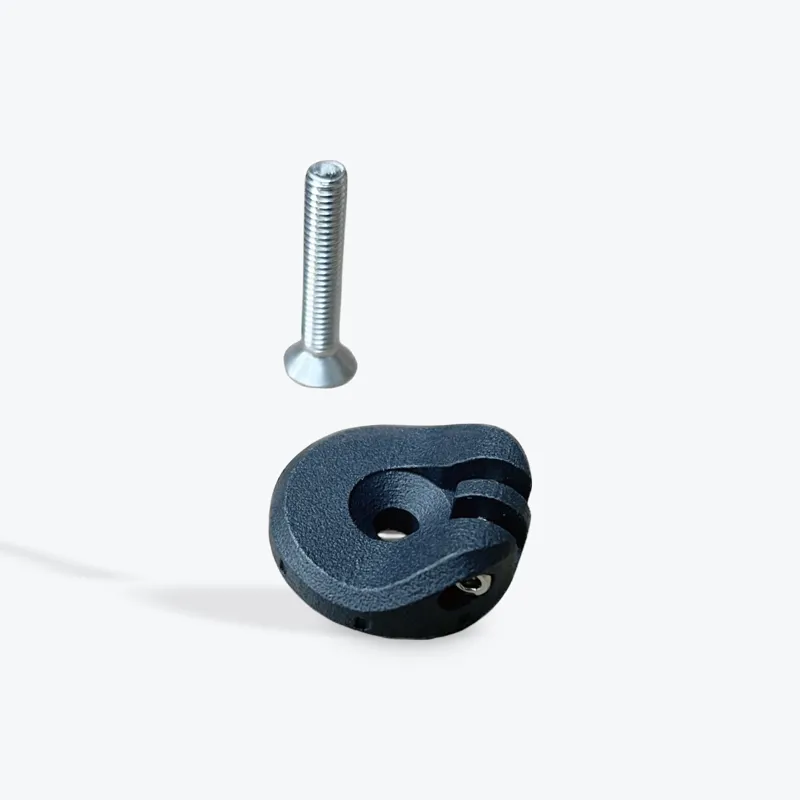

  3. Fit the E-Stem 100 and supplied M6 countersunk screw with a 5mm allen key. The E-Stem 100 can be positioned two ways; with the lug at the top (12 o'clock) or with the lug at the bottom (6 o'clock) depending on which gives you a better screen position.
  4. Align the E-Stem 100 with your stem and handlebars. The small indents around the circumference of the mount can help visually align the mount.
  5. Torque tighten the M6 countersunk screw following the normal manufacturers instructions, without overtightening. Typically this torque value is around 1-1.5Nm but should not exceed 3Nm.

Attaching the Bosch Intuvia 100 interface:

  1. Insert the lug on the back of the Bosch Intuvia 100 interface into the lug on the E-Stem 100.
  2. Pass the M3x20mm cap screw, supplied, through both items and into the M3 Nyloc nut, supplied, to secure.
  3. Pivot the Bosch Intuvia 100 interface to your preferred orientation and tighten the M3 cap screw to 0.5-1Nm, until the interface no longer moves.
  4. Install the Bosch Intuvia 100 display with a quarter turn clockwise.
