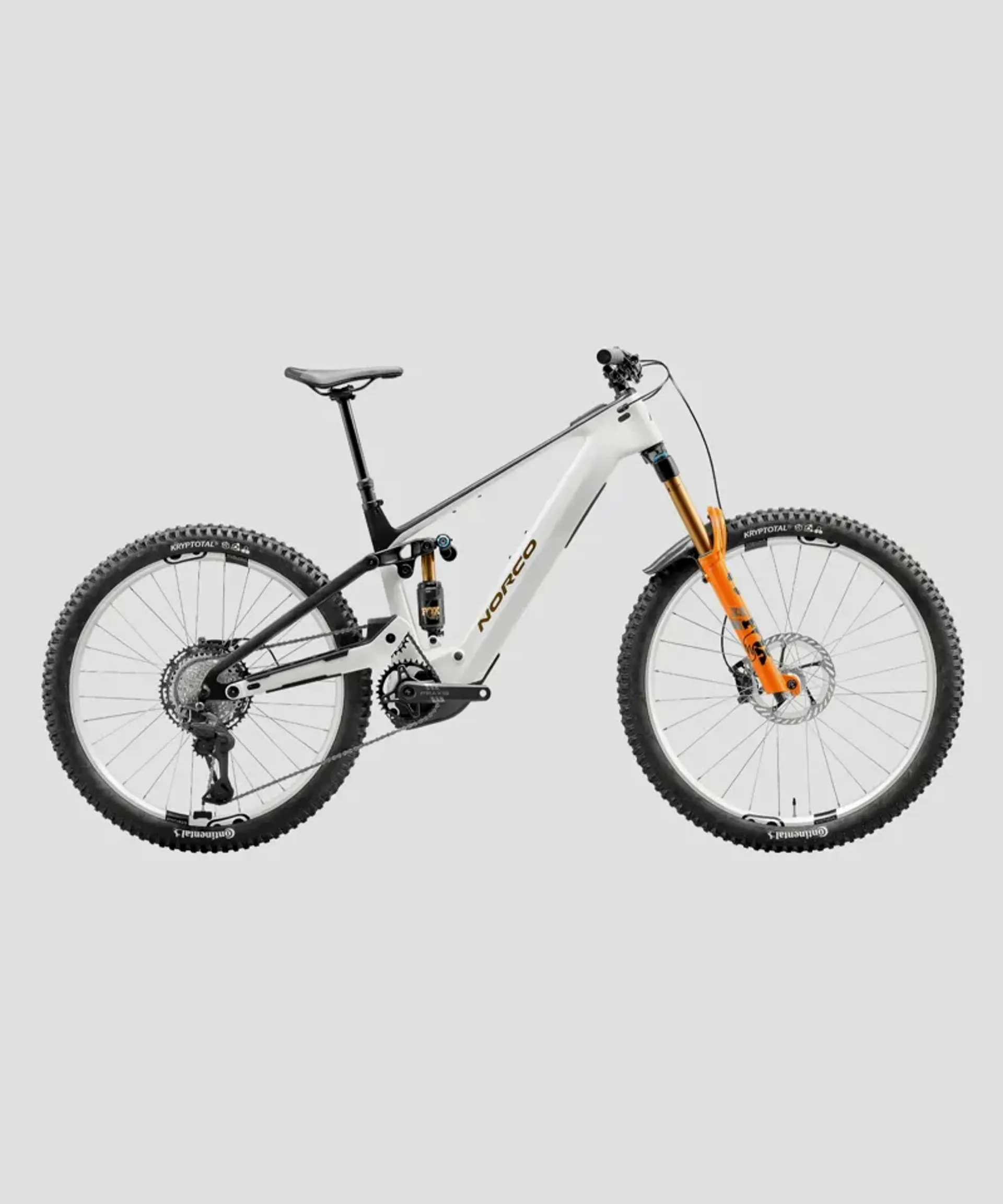

Norco Range VLT CX C1

Brand:Norco

Code:VAR-NO-0283315125WHTRaw

Rear Travel: 160mm

Frame Material: Carbon Fibre

Motor: Bosch Performance Line CX

Charge the steeps all day on a bike that makes rough terrain feel natural - and the climbs just as fun as the descents.

With 170/160 mm of travel, Range VLT CX is the big burly brother of the Sight made to take on the steepest trails with ease. A high torque, efficient motor and large battery capacity combined into a much lighter package, without sacrificing a full power motor, it's the anti-shuttle, enduro rig for people who live for the descents.

Technical Information

FRAME	Carbon Frame, 160mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
FORK	Fox 38 Factory Float, Grip X2, HSC / LSC / LSR, 170mm, 44mm Offest, Fender Included
REAR SHOCK	FOX Factory Float X2, 205x65mm TR,HSC/LSC, HSR/LSR 2 pos-Adj
HEADSET	No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered, ( ZS44/28.6 \| ZS56/40 )
GRIPS	WTB Wavelength, 130mm Length
HANDLE BAR	Norco 6061 DB Alloy, 800mm, 25mm
STEM	Norco Alloy, 40mm Length, 35mm Clamp
SEAT POST	TranzX YSI08 RAD+ Travel Adjust Dropper, 31.6mm, 150mm (S2) -170mm (S3) -200mm (S4, S5)
SEAT POST CLAMP	Norco Alloy Nutted Clamp, 34.9mm ID
SADDLE	Fizik Terra Aidon X5
FRONT BRAKE	Shimano XT M8220 4-P, Metallic pads
FRONT BRAKE ROTOR	Shimano RT-MT905, 203mm, 6-Bolt
REAR BRAKE	Shimano XT BL-M8200
REAR BRAKE ROTOR	Shimano RT-MT905, 180mm, 6-Bolt
BRAKE LEVERS	Shimano XT BL-M8200
SHIFTER REAR	Shimano Deore XT Di2 SW-M8250-IR, 12sp
REAR DERAILLEUR	Shimano Deore XT Di2 RD-M8250, SGS, 12sp
CASSETTE	Shimano Deore XT CS-M8200-12, 10-51T, 12sp
CHAIN	Shimano Deore XT CN-M8100, 12sp
CRANKSET	Praxis HD Aluminum Bosch Cranks, 34T, 160mm
FRONT HUB	Crank Bros. Synthesis Enduro, 15x110mm Boost, 32h, 6-Bolt
REAR HUB	Crank Bros. Synthesis Enduro, 12x148mm Boost, Micro Spline, 32h, 6-Bolt
SPOKES/NIPPLES	Sapim D-Light (front), Sapim Race (rear)
RIMS	Crank Bros. Synthesis Alloy, F- 31.5mm 28h, R- 29.5mm 32h, 29"-27.5 F/R
FRONT TYRE	Continental Kryptotal-F, Enduro, Soft, 29" x 2.4", Foldable
REAR TYRE	Continental Kryptotal-R, Enduro, Soft, 27.5" x 2.4", Foldable
DRIVE UNIT	Bosch Performance Line CX, 100 Nm / 750W
BATTERY	Bosch PowerTube 800 Wh

Please note: Specifications are subject to change without notice.

Sizing Information

Geometry

all measurements are shown in millimetres.

		Size 2	size 3	size 4	size 5
	wheel size	29" / 27.5"
	travel (mm front / mm rear)	170/160mm
	reach	441	466	491	516
	stack	631	640	650	659
hta	head tube angle	63.5
os	fork offset	44
st	seat tube length	395	415	445	475
sta	effective seat tube angle	76.5	77	77.25	77.5
rc	rear centre length	432	436	440	444
rc	rear centre length at sag	432	436	440	444
bbdf/r	bottom bracket drop (front/rear)	20.5/0
bbh	bottom bracket height	353
htt	horizontal top tube	589	613	637	661
wb	wheelbase	1228	1261	1295	1328
soh	standover	705	711	718	733
ht	head tube length	115	125	135	145
	trail	138
	recommended seatpost drop	150	170	200	200
	maximum post insertion	250	270	300	330
	stem length	40
	crank length	165
	tyre size	2.35" - 2.6"
	water bottle compatible	1 x 620ml	1 x 750ml
