YOU LIKE SHREDDING THE DOWNS MORE THAN GRINDING THE UPS. WE GET THAT. THAT SAID YOU WANT SOMETHING MORE VERSATILE THAN AN EDH BIKE. WE GET THAT TOO. THAT’S WHY WE MADE OUR MOST RADICAL EBIKE, THE LEVEL.

Mondraker

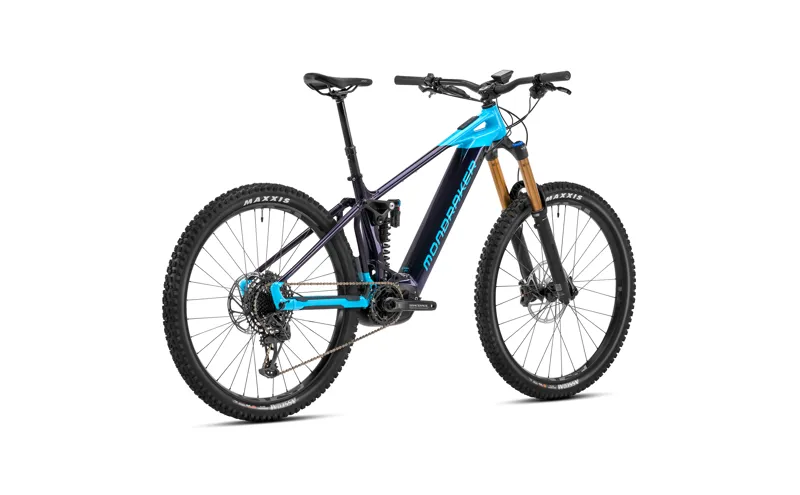

Mondraker Level RR ED1 Aluminium Ebike Bosch Smart System Blue

£4,500.00 £6,999.00 36% off

Size Guide

Mondraker Level RR ED2 Aluminium Ebike Bosch Smart System Red

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

....

RETURNS FREQUENTLY ASKED QUESTIONS

Please refer to TERMS AND CONDITIONS for full policy.

Can I return an unwanted item?

We feel that you should be totally satisfied with your purchase from True North Cycle Hub, If, however, you wish to return an item as unwanted you can return it within 14 days from the date you receive the product. Please note that we require you to contact us by email and quote your invoice/receipt number and reasons for return prior to sending the item back. Please see below for important details on the condition of an unwanted item return.

The cost of the item will be refunded, but any initial delivery costs will not be refunded. Return costs are payable by customer, also see courier collections.

Condition of return.

If you want to return an unwanted item, the item must be as priority unused, in its original condition and suitable for resale (the items must be in an “as new” condition and in the original packaging including labels, stickers, additional accessories etc.). If reasonable care has not been taken of the item prior to our receipt, resulting in damage or deterioration of the goods or packaging then a charge will be applied for the reduction in value. The item must be accompanied by the invoice/receipt with details of the reason for return stated. You are responsible for the item until it reaches us; we, therefore, suggest that you use a secure method of delivery e.g. signed delivery. The customer is responsible for any delivery charges incurred for the return of an unwanted item. Remember, all packaging must be undamaged so please do not tape up packaging or write on it as this will make it unacceptable, this particularly applies to any boxed item, the box must not be used as external packaging!

Incorrectly delivered items.

Should in the unlikely event that we send a wrong item we will, at our expense, arrange a collection or supply a pre paid postage label to enable you to return the incorrect item to us. Once we have received the item back we will issue you a replacement item.

Damaged in transit.

Please check your purchase upon arrival. If you notice any damage to the packaging please sign for it as damaged and notify us within 24 hours. Please email to info@truenorthcyclehub.co.uk photographs and description of the damage. Once accepted we will arrange a collection or supply a pre paid postage label to you to enable you to return the damaged item. Once we have received the item back we will issue you a replacement item should a replacement be available.

When will I receive a refund?

The customer can expect to receive the refund of the cost for the item within two weeks of us receiving the item (assuming satisfaction with the condition of the product).

For information on how to process a WARRANTY CLAIM please refer to our WARRANTY POLICY.

Mondraker Level RR ED1 Aluminium Ebike Bosch Smart System Blue

Season:2023

Brand:Mondraker

Code:MONDLEVELRR

Looking for your next dream bike, but want to make sure it’s just right? True North Cycle Hub and their years of experience and knowledge are here to help get you out riding and find you the perfect bike.

When you purchase a Mondraker Mountain Bike, you’ll receive a Professional Fitting to ensure that you and your new eBike are a perfect match. With a free 2 hour Coaching Session with our Expert Cycling Coach, you’ll be ready to hit the trails with confidence.

After you’ve spent some time getting to know your new Mondraker on your favourite local trails, we’ll complete your first and second service for free, to keep your dream bike running smoothly for years to come.

Offer available when you buy an in-stock Mondraker, and redeemable in store.

Visit us in-store, or Click & Collect today. Please contact us for more information.

The LEVEL RR has a 750Wh battery fully integrated into the down tube and comes fully equipped with a Bosch Performance Line CX G4 Smart System motor combined with Bosch’s new Mini Remote and System Controller, both of which let you keep everything under control even if you don't have the KIOX display mounted. The LEVEL RR rocks a Fox 38 Float fork and a Fox DHX2 coil shock for even greater sensitivity; SRAM’s GX Eagle/NX Eagle drivetrain; e*thirteen’s E*Spec Plus IW30 wheels; SRAM’s Code R brakes, and ONOFF Components are the cherry on top. It’s a proper super enduro ebike.

Technical Information

frame

Frame

Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers

Sizes

S: 380mm / M: 420mm / L: 450mm / XL: 490mm

Rear shock

Fox DHX2 Performance Elite, 225x75mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings

Shock settings

Medium compression, medium rebound. Spring rate: S/M size 300 lbs, L size 350 lbs, XL size 400 lbs

Fork

Fox 38 29 Float FIT GRIP2 Factory Kashima, 180mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

Headset

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

Stem

Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips

Onoff Desert, 1lock-on, 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm

Saddle

FIZIK Terra Aidon X5 145mm

Front brake

Sram Code R, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Rear brake

Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Brake lever

Sram Code R, tool-free reach adjust

Rims

e*thirteen E*Spec, IW30 Hookless, 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F / 32R spokes

Spokes

e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers

Front hub

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts

Front tire

Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Rear tire

Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Crankset

Race Face Aeffect ebike, 165mm

Rings

Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

Chain

Sram SX Eagle, 12s, Powerlock

Rear derrailleur

Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Shift levers

Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click

Casette

Sram PG-1210, 11-50T, 12s

Derailleur hanger

Mondraker M068

Weight

26,8kg

Display

Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller

Motor

Bosch Performance Line CX Cruise (25Km/h) Smart System

battery

Battery

Bosch Powertube 750Wh

Sizing Information

FRAME SIZE	S	M	L	XL
A	Seattube length	380mm	420mm	450mm	490mm
B	Toptube length	602mm	622mm	647mm	667mm
C	Bottom bracket drop	-15mm	-15mm	-15mm	-15mm
D	Bottom bracket height	357mm	357mm	357mm	357mm
E	Chainstay length	455mm	455mm	455mm	455mm
F	Seat tube angle	73.5°	73.5°	73.5°	73.5°
G	Effective seattube angle	76.5°	76.5°	76.5°	76.5°
H	Headtube angle	65°	65°	65°	65°
I	Fork Offset	44mm	44mm	44mm	44mm
J	Wheelbase	1250mm	1270mm	1290mm	1310mm
K	Headtube length	110mm	110mm	130mm	130mm
L	Reach	450mm	470mm	490mm	510mm
M	Stack	632mm	632mm	652mm	652mm
