IF YOU WANT THE BEST FROM THE WORLD OF ENDURO EBIKES EQUIPPED WITH POWERFUL ENGINES,the Mondraker Crafty XR is your ebike in the Mondraker range.
IF YOU WANT THE BEST FROM THE WORLD OF ENDURO EBIKES EQUIPPED WITH POWERFUL ENGINES,the Mondraker Crafty XR is your ebike in the Mondraker range.
Mondraker

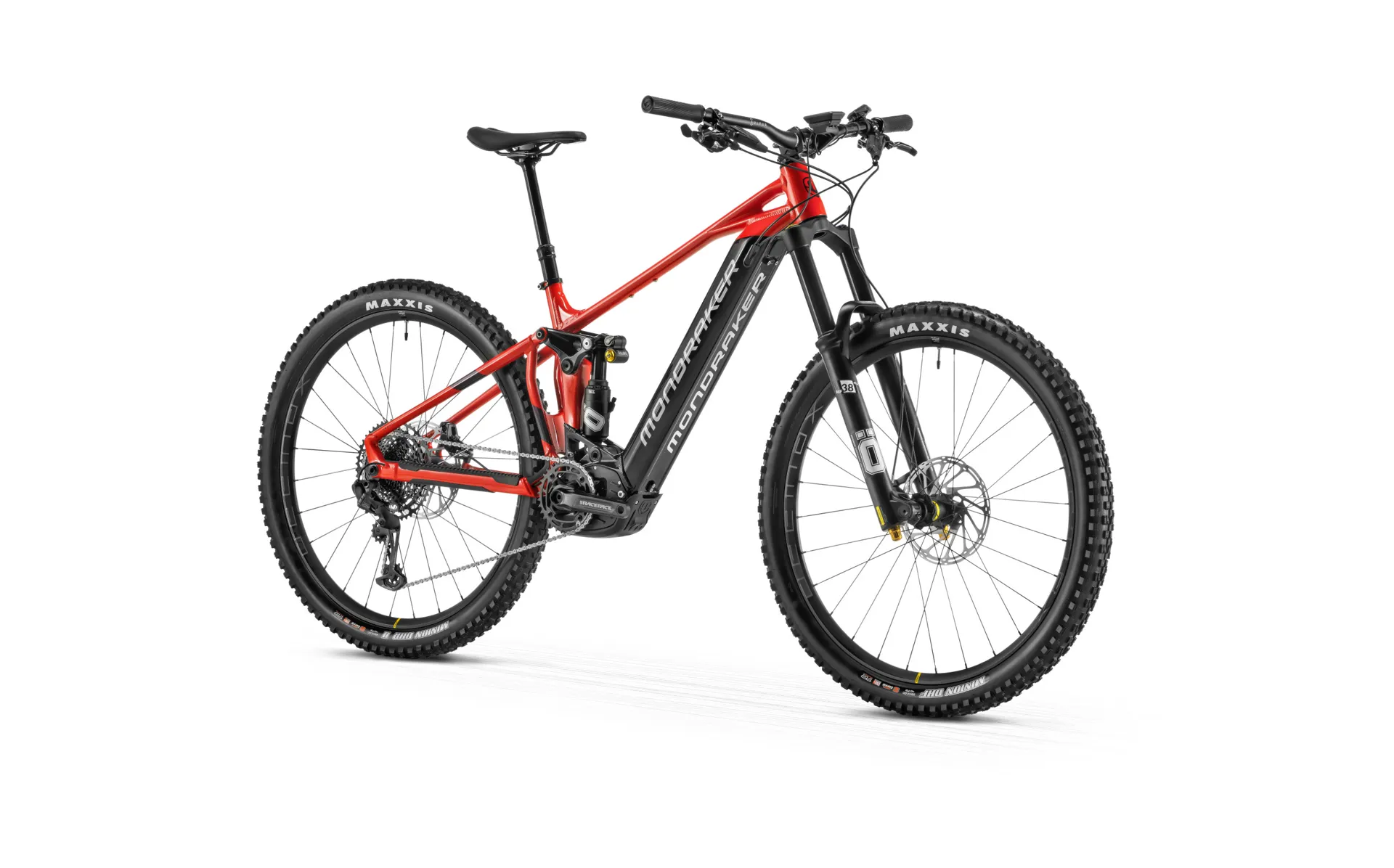

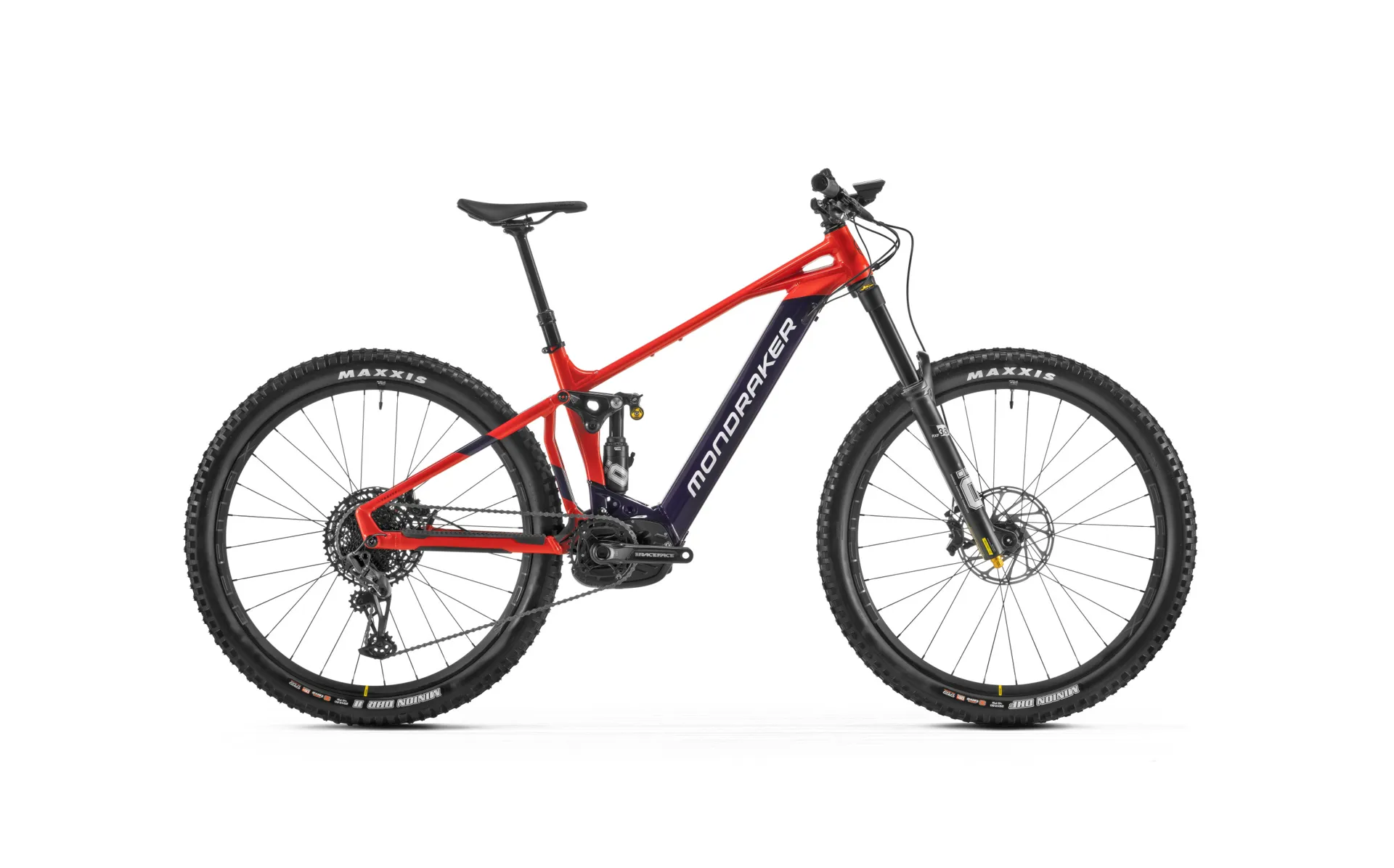

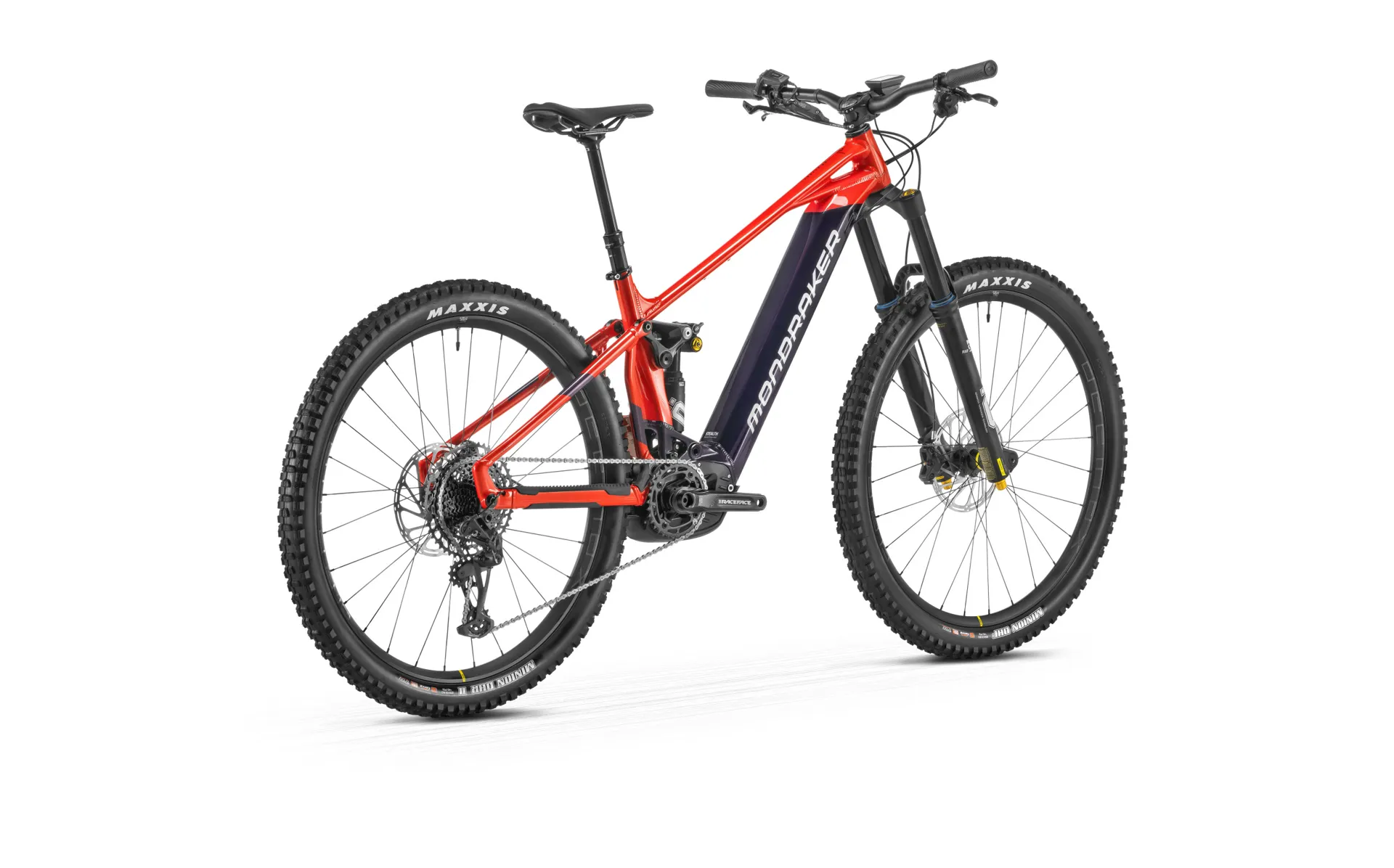

Mondraker Crafty XR 22 Flaming Red/Deep Purple

£4,850.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

....

RETURNS FREQUENTLY ASKED QUESTIONS

Please refer to TERMS AND CONDITIONS for full policy.

Can I return an unwanted item?

We feel that you should be totally satisfied with your purchase from True North Cycle Hub, If, however, you wish to return an item as unwanted you can return it within 14 days from the date you receive the product. Please note that we require you to contact us by email and quote your invoice/receipt number and reasons for return prior to sending the item back. Please see below for important details on the condition of an unwanted item return.

The cost of the item will be refunded, but any initial delivery costs will not be refunded. Return costs are payable by customer, also see courier collections.

Condition of return.

If you want to return an unwanted item, the item must be as priority unused, in its original condition and suitable for resale (the items must be in an “as new” condition and in the original packaging including labels, stickers, additional accessories etc.). If reasonable care has not been taken of the item prior to our receipt, resulting in damage or deterioration of the goods or packaging then a charge will be applied for the reduction in value. The item must be accompanied by the invoice/receipt with details of the reason for return stated. You are responsible for the item until it reaches us; we, therefore, suggest that you use a secure method of delivery e.g. signed delivery. The customer is responsible for any delivery charges incurred for the return of an unwanted item. Remember, all packaging must be undamaged so please do not tape up packaging or write on it as this will make it unacceptable, this particularly applies to any boxed item, the box must not be used as external packaging!

Incorrectly delivered items.

Should in the unlikely event that we send a wrong item we will, at our expense, arrange a collection or supply a pre paid postage label to enable you to return the incorrect item to us. Once we have received the item back we will issue you a replacement item.

Damaged in transit.

Please check your purchase upon arrival. If you notice any damage to the packaging please sign for it as damaged and notify us within 24 hours. Please email to info@truenorthcyclehub.co.uk photographs and description of the damage. Once accepted we will arrange a collection or supply a pre paid postage label to you to enable you to return the damaged item. Once we have received the item back we will issue you a replacement item should a replacement be available.

When will I receive a refund?

The customer can expect to receive the refund of the cost for the item within two weeks of us receiving the item (assuming satisfaction with the condition of the product).

For information on how to process a WARRANTY CLAIM please refer to our WARRANTY POLICY.

Mondraker Crafty XR 22 Flaming Red/Deep Purple

Season:2022

Brand:Mondraker

Code:MONDCXR22

With the new Bosch Smart System motor and 750Wh integrated battery, you’ll never have to worry about limits. With Mondrakers FORWARD GEOMETRY, 29″ wheels, Ohlins 170mm front suspension and Ohlins 150mm rearto offer you many ways of spending as many hours as you want riding. Stable and fast, your perfect all mountain/enduro ebike. This ebike will, without doubt, will handle anything you can throw at it, plus a bit more if you’re willing to find out?
Technical Information
  • frame

    Frame

    Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.

    sizes

    Sizes

    S: 380mm / M: 420mm / L: 450mm / XL: 490mm

  • rear shock

    Rear shock

    Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings

    shock settings

    Shock settings

    C20 compression, R35 rebound

  • fork

    Fork

    Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

    headset

    Headset

    Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

  • stem

    Stem

    Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

    handlebar

    Handlebar

    Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

  • grips

    Grips

    Onoff Diamond, 1lock-on, 135mm

    seatpost

    Seatpost

    Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm

  • saddle

    Saddle

    FIZIK Terra Aidon X5 145mm

    front brake

    Front brake

    Sram G2 RS, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

  • rear brake

    Rear brake

    Sram G2 RS, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

    brake lever

    Brake lever

    Sram G2 RS, SwingLink and lever pivot bearings, tools-free reach and contact point adjust

  • rims

    Rims

    Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes

    spokes

    Spokes

    Mavic straightpull duble butted, contactless lacing

  • front hub

    Front hub

    Mavic, Boost 15x110mm, IS 6 bolts

    rear hub

    Rear hub

    Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub

  • front tire

    Front tire

    Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

    rear tire

    Rear tire

    Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

  • crankset

    Crankset

    Race Face Aeffect ebike, 165mm

    rings

    Rings

    Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

  • chain

    Chain

    Sram NX Eagle, 12s, Powerlock

    rear derrailleur

    Rear derrailleur

    Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

  • shift levers

    Shift levers

    Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click

    casette

    Casette

    Sram XG-1275, 10-52T, 12s

  • derailleur hanger

    Derailleur hanger

    Mondraker M068

    weight

    Weight

    24.9 kg

  • motor

    Motor

    Bosch Performance Line CX Cruise (25Km/h) GEN4 BS3

    battery

    Battery

    Bosch Powertube 750Wh

  • display

    Display

    Bosch Kiox 300

Sizing Information
FRAME SIZESMLXL
ASeattube length380 mm420 mm450 mm480 mm
BToptube length615 mm626 mm660 mm680 mm
CBottom bracket drop-18 mm-18 mm-18 mm-18 mm
DBottom bracket height349 mm349 mm349 mm349 mm
EChainstay length455 mm455 mm455 mm455 mm
FSeat tube angle72,5°72,5°72,5°72.5º
GEffective seattube angle75°75°75°75°
HHeadtube angle64,5°64.5°64.5°64.5°
IFork Offset44 mm44 mm44 mm44 mm
JWheelbase1235 mm1255 mm1280 mm1300 mm
KHeadtube length110 mm110 mm130 mm130 mm
LReach440 mm460 mm480 mm500 mm
MStack632 mm632 mm650 mm650 mm
