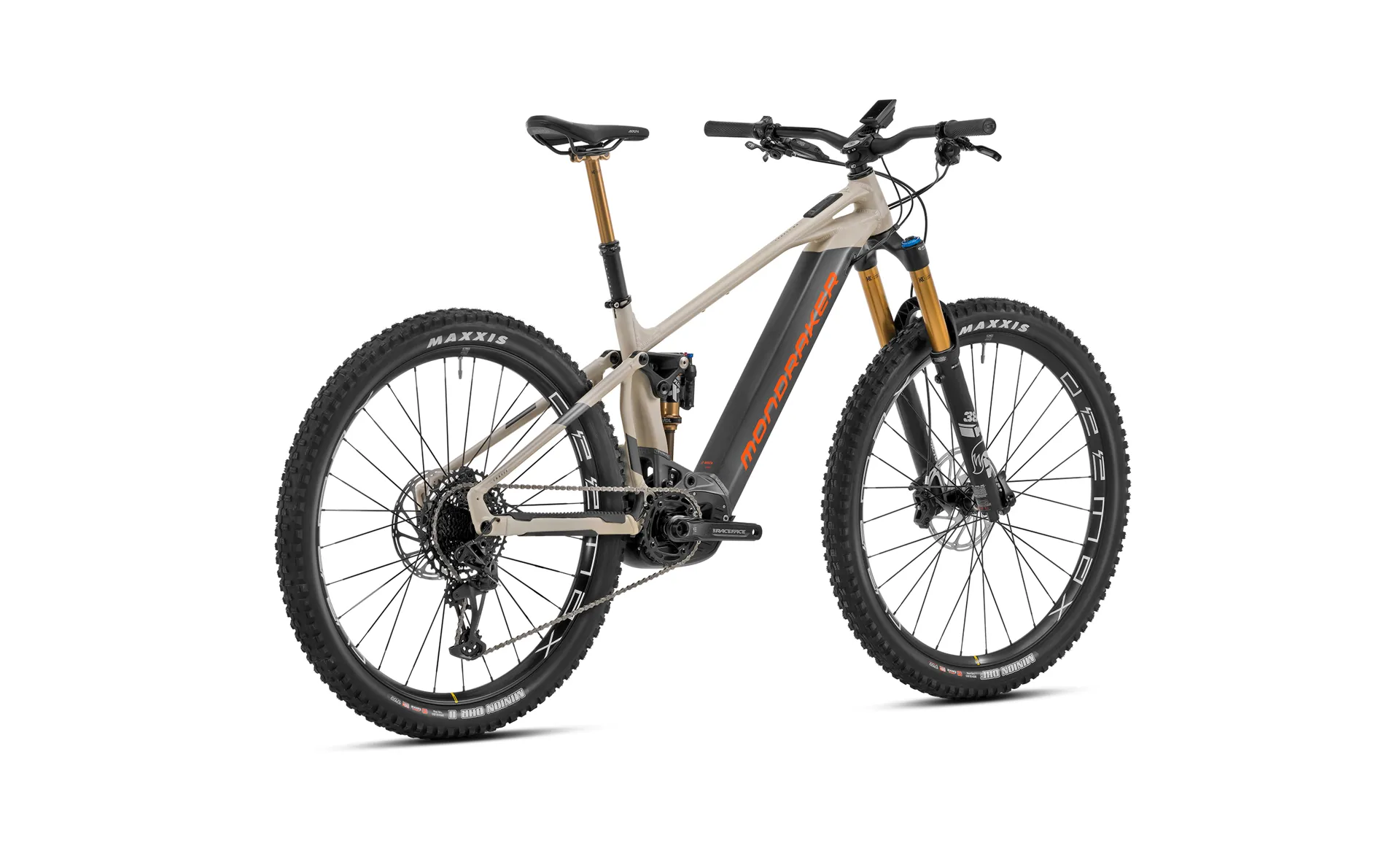

Mondraker Crafty RR ED1 Aluminium Ebike Bosch Smart System Sand

Mondraker Crafty RR ED1 Aluminium Ebike Bosch Smart System Sand-1

TAKING FULL ADVANTAGE OF ITS OPTIMIZED ZERO SUSPENSION SYSTEM THIS BIKE SOAKS UP THE TRAIL CHATTER LIKE A DREAM

Mondraker

Mondraker Crafty RR ED1 Aluminium Ebike Bosch Smart System Sand

£6,899.00

Size Guide

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

....

RETURNS FREQUENTLY ASKED QUESTIONS

Please refer to TERMS AND CONDITIONS for full policy.

Can I return an unwanted item?

We feel that you should be totally satisfied with your purchase from True North Cycle Hub, If, however, you wish to return an item as unwanted you can return it within 14 days from the date you receive the product. Please note that we require you to contact us by email and quote your invoice/receipt number and reasons for return prior to sending the item back. Please see below for important details on the condition of an unwanted item return.

The cost of the item will be refunded, but any initial delivery costs will not be refunded. Return costs are payable by customer, also see courier collections.

Condition of return.

If you want to return an unwanted item, the item must be as priority unused, in its original condition and suitable for resale (the items must be in an “as new” condition and in the original packaging including labels, stickers, additional accessories etc.). If reasonable care has not been taken of the item prior to our receipt, resulting in damage or deterioration of the goods or packaging then a charge will be applied for the reduction in value. The item must be accompanied by the invoice/receipt with details of the reason for return stated. You are responsible for the item until it reaches us; we, therefore, suggest that you use a secure method of delivery e.g. signed delivery. The customer is responsible for any delivery charges incurred for the return of an unwanted item. Remember, all packaging must be undamaged so please do not tape up packaging or write on it as this will make it unacceptable, this particularly applies to any boxed item, the box must not be used as external packaging!

Incorrectly delivered items.

Should in the unlikely event that we send a wrong item we will, at our expense, arrange a collection or supply a pre paid postage label to enable you to return the incorrect item to us. Once we have received the item back we will issue you a replacement item.

Damaged in transit.

Please check your purchase upon arrival. If you notice any damage to the packaging please sign for it as damaged and notify us within 24 hours. Please email to info@truenorthcyclehub.co.uk photographs and description of the damage. Once accepted we will arrange a collection or supply a pre paid postage label to you to enable you to return the damaged item. Once we have received the item back we will issue you a replacement item should a replacement be available.

When will I receive a refund?

The customer can expect to receive the refund of the cost for the item within two weeks of us receiving the item (assuming satisfaction with the condition of the product).

For information on how to process a WARRANTY CLAIM please refer to our WARRANTY POLICY.

Mondraker Crafty RR ED1 Aluminium Ebike Bosch Smart System Sand

Season:2023

Brand:Mondraker

Code:MONDCRAFRR

Then you add FORWARD GEOMETRY and a STEALTH ALLOY EVO frame to give you spectacular agility and the most fun ride you can imagine. The Fox 38 fork together with Fox’s Float X shock absorber, both from the Factory range, provide mind-blowing control whatever the situation and however gnarly things get. There’s no question the improvements to the CRAFTY RR will make you feel like a pro.

Technical Information

Frame

Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.

Sizes

S: 380mm / M: 420mm / L: 450mm / XL: 490mm

Rear shock

Fox Float-X LV Factory Kashima, 205x65mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings

Shock settings

medium compression, medium rebound, air volume spacer 0.2

Fork

Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high and low-speed compression, high and low-speed rebound, air preload

Headset

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

Stem

Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips

Onoff Desert, 1lock-on, 135mm

Seatpost

Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M/L size: 418.3x150mm, XL size: 475.1x175mm

Saddle

FIZIK Terra Aidon X5 145mm

Front brake

Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Rear brake

Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Brake lever

Sram Code R, tool-free reach adjust

Rims

Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

Spokes

Mavic J-bend double butted, contactless lacing

Front hub

Mavic, Boost 15x110mm, IS 6 bolts

Rear hub

Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts

Front tire

Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

Rear tire

Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

Crankset

Race Face Aeffect ebike, 165mm

Rings

Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

Chain

Sram NX Eagle, 12s, Powerlock

Rear derrailleur

Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Shift levers

Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click

Casette

Sram XG-1230, 11-50T, 12s

Derailleur hanger

Mondraker M068

Weight

25,5 kg

Display

Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller

Motor

Bosch Performance Line CX Cruise (25Km/h) Smart System

Battery

Bosch Powertube 750Wh

Sizing Information


	FRAME SIZE	S	M	L	XL
A	Seattube length	380mm	420mm	450mm	490mm
B	Toptube length	605mm	625mm	650mm	670mm
C	Bottom bracket drop	-25mm	-25mm	-25mm	-25mm
D	Bottom bracket height	350mm	350mm	350mm	350mm
E	Chainstay length	455mm	455mm	455mm	455mm
F	Seat tube angle	73.5°	73.5°	73.5°	73.5°
G	Effective seattube angle	76°	76°	76°	76°
H	Headtube angle	65.5°	65.5°	65.5°	65.5°
I	Fork Offset	44mm	44mm	44mm	44mm
J	Wheelbase	1225mm	1245mm	1265mm	1285mm
K	Headtube length	110mm	110mm	130mm	130mm
L	Reach	450mm	470mm	490mm	510mm
M	Stack	622mm	622mm	640mm	640mm
