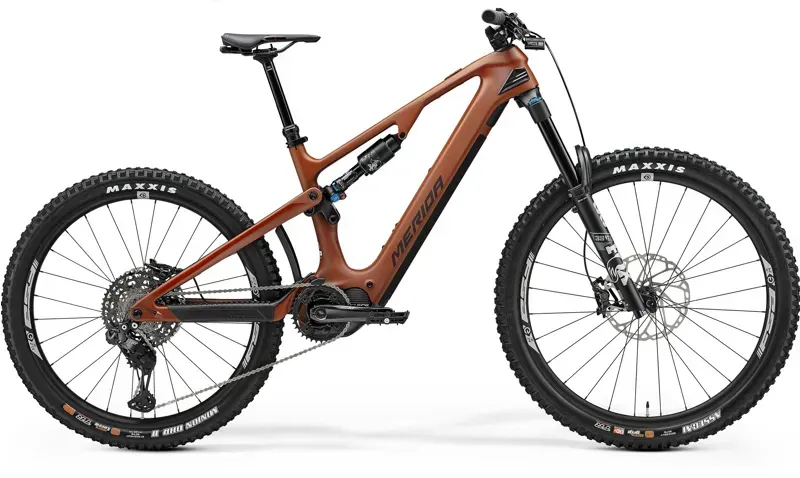

Merida eOne-Sixty 8000 Electric Mountain Bike In Silk Brown

Season:2025

Brand:Merida

Code:P-Q815

The latest addition to the eONE-SIXTY CF range offers cutting-edge technology and performance.

The eONE-SIXTY CF combines a proven carbon fibre chassis and suspension configuration with the latest Auto and Free Shift technology, thanks to Shimano's Di2 XT drivetrain. The finely tuned geometry offers maximum control on the way up and down, while the EP801 drive unit provides plenty of power. Shimano's electronic shifting technologies allow the rider to focus on the ride.

This model features an enduro-ready lightweight full carbon chassis with a full-support motor, 600 Wh battery, and an optional 360 Wh range extender. With 170 mm travel at the front and 174 mm at the rear, it's designed for both race tracks and trails. The award-winning FAST kinematic suspension and AGILOMETER sizing are combined with a low-maintenance flexstay suspension, offering size-tuned progression for all riders.

The bike includes mixed size 29" front and 27.5" rear wheels as standard, with the option to switch to a full 29er setup without affecting the geometry. The geometry is designed to handle tough enduro trails while maintaining a playful character. The 30-230 mm travel-adjustable dropper post allows for a choice between a longer frame for stability or a shorter one for agility.

Features:

  • Lightweight full carbon fibre CF4 frame with 174 mm rear wheel travel.
  • Fox 38 Performance fork with 170 mm travel and updated Float X2 Performance rear shock.
  • Shimano XT Di2 Linkglide e-bike drivetrain with Auto and Free Shift functions.
  • Integrated 600 Wh battery with optional 360 Wh range extender.
  • Powerful Shimano EP801 drive unit.
  • Mixed wheel size as standard with option to full 29".
  • FSA i30 alloy wheelset.
  • Reach-based AGILOMETER sizing system with 30-230 mm adjustable dropper post.
Technical Information
  • Model Year
    2025
  • Frame
    eONE-SIXTY CF4 III
  • Material
    Carbon
  • Suspension Travel
    160mm
  • Max Wheelsize
    29" x 2.6"
  • Axle Standard
    148x12mm
  • Intube
    Max. 630 Wh
  • Frame Size
    XShort, Short, Mid, Long, XLong
  • Shock
    Fox Float X Performance
  • Shock Lever
    2 Pos Lever
  • Fork
    Fox 38 Performance Elite eMTB+
  • Fork Type
    Air
  • Fork Suspension Travel
    170mm
  • Fork Type
    Tapered
  • Fork Offset
    44mm
  • Fork Max Wheelsize
    29x2.6"
  • Drive Unit
    Shimano EP801
  • Drive Unit Torque
    85Nm
  • Battery
    Trendpower Internal Battery 600 Wh TPS-C15-58SD, Shimano Gen 2, integrated
  • Battery Charger
    Trendpower EU Smart Charger 4A
  • Display
    Shimano SC-EM800
  • Speed Sensor
    Shimano EW-SS301
  • Wheelset
    FSA E-MTB i30 Alloy
  • Front Hub Width
    110x15mm
  • Rear Hub Width
    148x12mm
  • Inner Width
    30mm
  • Brake Mount
    6-Bolt
  • Material
    Aluminium
  • Tubeless Ready
    Tubeless tape and valves included
  • Front Tyre
    Maxxis Assegai 29x2.5" Fold TR EXO+ 3C MaxxGrip
  • Rear Tyre
    Maxxis Minion DHR II 27.5x2.4" Fold 3C DD TR MaxxTerra
  • Hubs
    MERIDA EXPERT TR
  • Chainwheel
    FSA 1x Steel Chainring 36 teeth
  • Crank
    Shimano FC-E8150 165 mm all sizes
  • Cassette
    Shimano LG700 11-50 teeth 11 speed
  • Chain
    CNLG500
  • Shifters
    Shimano SL-MT500-IL / Shimano XT Di2 M8150 11
  • Rear Derailleur
    Shimano XT Di2 RDM8150 LinkGlide 11
  • Brakes
    Shimano XT 4 piston
  • Rotors
    Shimano RT66 220 mm, 203 mm
  • Headset
    Acros ICR MERIDA INTEGRATED neck w/ Blocklock
  • Stem
    MERIDA EXPERT eTR II Aluminium 35mm diameter, 0° stem angle, Supernova mount
  • Stem Size
    40 mm all sizes
  • Handlebar
    MERIDA EXPERT eTR 780mm width XS,S 20RHB M,L,XL 30RHB
  • Grip
    MERIDA EXPERT EC
  • Seat Post
    MERIDA TEAM TR II 34.9mm diameter, 0mm setback
  • Seat Post Travel
    SHORT, MID, LONG and XLONG 30-230mm, XSHORT 30-200mm
  • Seat Clamp
    MERIDA EXPERT
  • Saddle
    Proxim Nembo Steel V-mount adapter incl. MERIDA minitool
  • Lights
    LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount / USB REAR Light CG-214RG
  • Pedal
    VP VP-532
