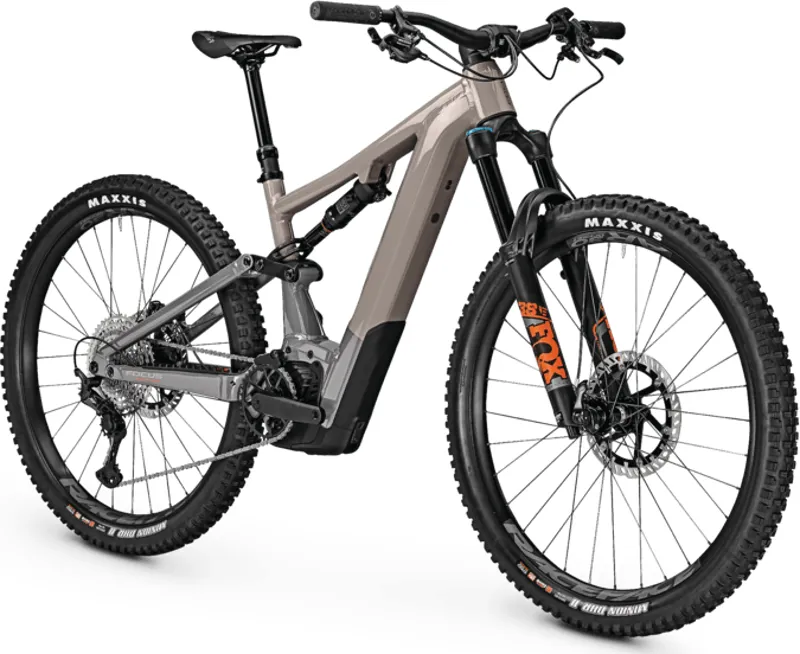

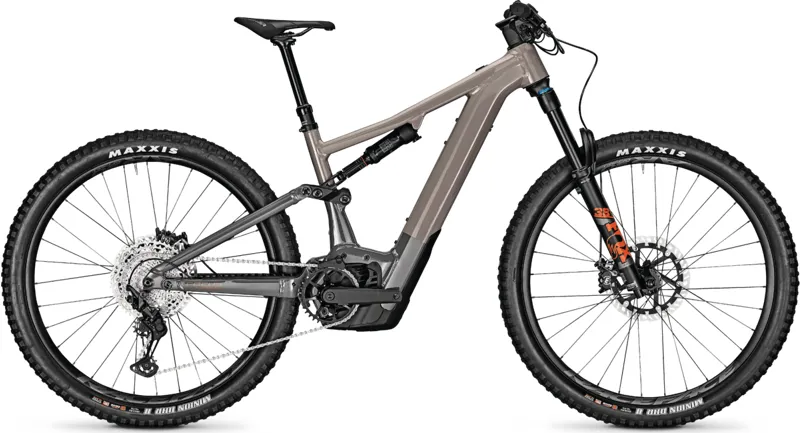

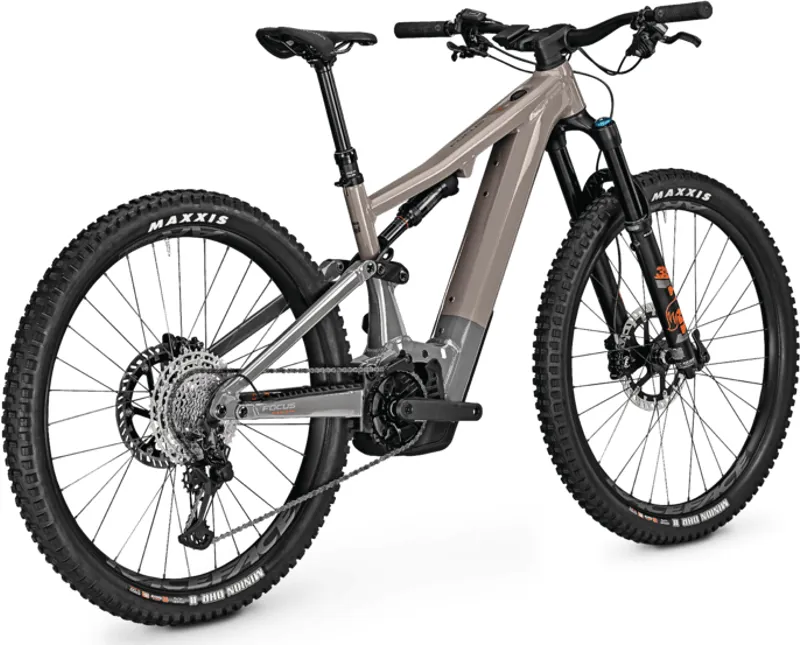

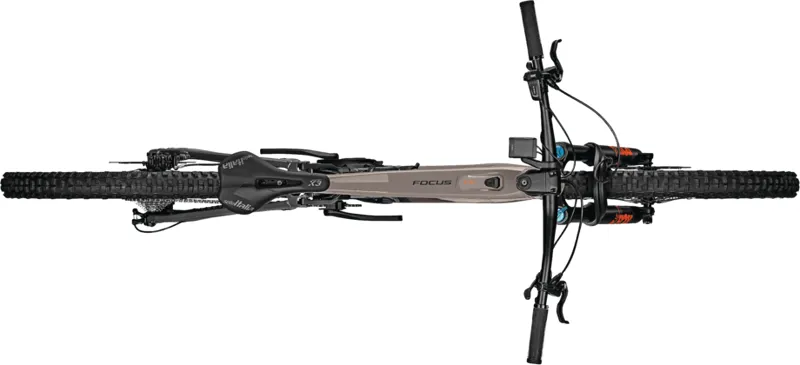

Focus Sam2 6.8 Aluminium Ebike Bosch Smart System Grey

Season:2023

Brand:Focus

Code:FOCSAM26.823

DESIGNED FOR DOWN

SUPER POWERFUL AND DYNAMIC BOSCH PERFORMANCE LINE CX E-DRIVE

Thanks to the efficient Bosch Performance Line CX system, you can ride more trails in the same time. The powerful e-drive with a torque of up to 85 Nm makes sure uphill with the FOCUS SAM² 6.8 is fun as well. Even though the motor has got your back on climbs, you can still easily control your full-suspension bike, also in toughest conditions. The slide-out battery with 750 Wh can be charged via the integrated charging port at the bike’s seat tube. Alternatively, you can also remove the battery easily and fast. There is no need for any tools. Just unlock the buckle and open the cover to slide out the battery.


BIKE DESIGN FOR OPTIMAL PERFORMANCE IN ANY SITUATION

Thanks to the long wheelbase and slack head angle, the FOCUS SAM² 6.8 rides super stable even at high speed in roughest terrain. It has a perfect stiffness-to-weight ratio because the slide-out battery only requires a minimal cut-out in the down tube. Further, the battery is placed as low as possible into the down tube. This frame design improves the bike's centre of gravity and makes this e-MTB more stable on descents. The low stand-over height gives you generous space for moving and enables you to handle your bike perfectly in technical terrain. By turning the headset cups, you can easily change the head angle of your FOCUS SAM² 6.8 according to your riding preferences from 64.5° to 63.5°.


MADE FOR THE ROUGHEST TRAILS

The kinematics of our FOCUS SAM² 6.8 is made for the roughest rides. Our upgraded F.O.L.D. (FOCUS Optimised Linkage Design) is the core component of this bike and optimised for its purpose. It allows the integrated coil shock to work best. With 180/170 mm travel, a suspension fork with 38 mm stanchions and fast 29" wheels, the FOCUS SAM² 6.8 is ready to shred. You can always rely on strong Magura brakes with large 220 mm rotors.
Technical Information

FOCUS SAM2 6.9 SPECIFICATION

FRAME
7005 hydroformed aluminium, 3D forging, 170 mm F.O.L.D. Gen2, 148x12 mm thru axle, internal cable routing, post mount 203 mm
FORK
FOX 38 Rhythm Float 29, Grip, E-Bike optimized, 15x110 mm, 44mm rake
TRAVEL OF SUSPENSION FORK
180 mm
SHOCK
Rock Shox Super Deluxe Coil Select, 230/65 mm, hardware: 25,0 x 8.0 mm, no Bushing
MOTOR
Bosch Performance CX Smart, 85 Nm, 250 W
BATTERY WATT-HOURS
750 Wh
BATTERY AMPERE HOURS
20,8 Ah
DISPLAY
Bosch LED Remote + Kiox 300
SHIFTER
Shimano Deore XT M8100, 12-speed
REAR DERAILLEUR
Shimano Deore XT M8100, 12-speed
SPROCKET
Shimano Deore CS-M6100, 12-speed
CHAIN
Shimano Deore CN-M6100, 12-speed
CRANKSET
Samox EC40 ISIS
TRANSMISSION OF DRIVE
front: 36, rear: 10-51
BOTTOM BRACKET
Integrated in Drive Unit
HANDLEBAR
Aluminium, 800 mm, rise: 30 mm, backsweep: 9°
STEM
FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium
HEADSET
ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated, 1.5/1.8" angle headset
SADDLE
Selle Italia X3
SEATPOST
Post Moderne dropper post PM-214, 34.9 mm
BRAKE CALIPER
Magura MT5
BRAKE LEVER
Magura MT5 HC-1
BRAKE
Disc
RIMS
RaceFace AR30 Offset
REAR HUB
Novatec D462, 12x148 mm
FRONT HUB
Novatec D041, 15x110 mm
TIRES
Maxxis Minion DHR II, 2.6, 66-622, EXO+
GEARS
12
BIKE WEIGHT INCL. BATTERY IN KG.
26,7
SIZE
39,42,44,46
* Subject to technical modification without notice. Errors and omissions excepted.** Weight in size M, of standard specification and without pedals.
