Amflow

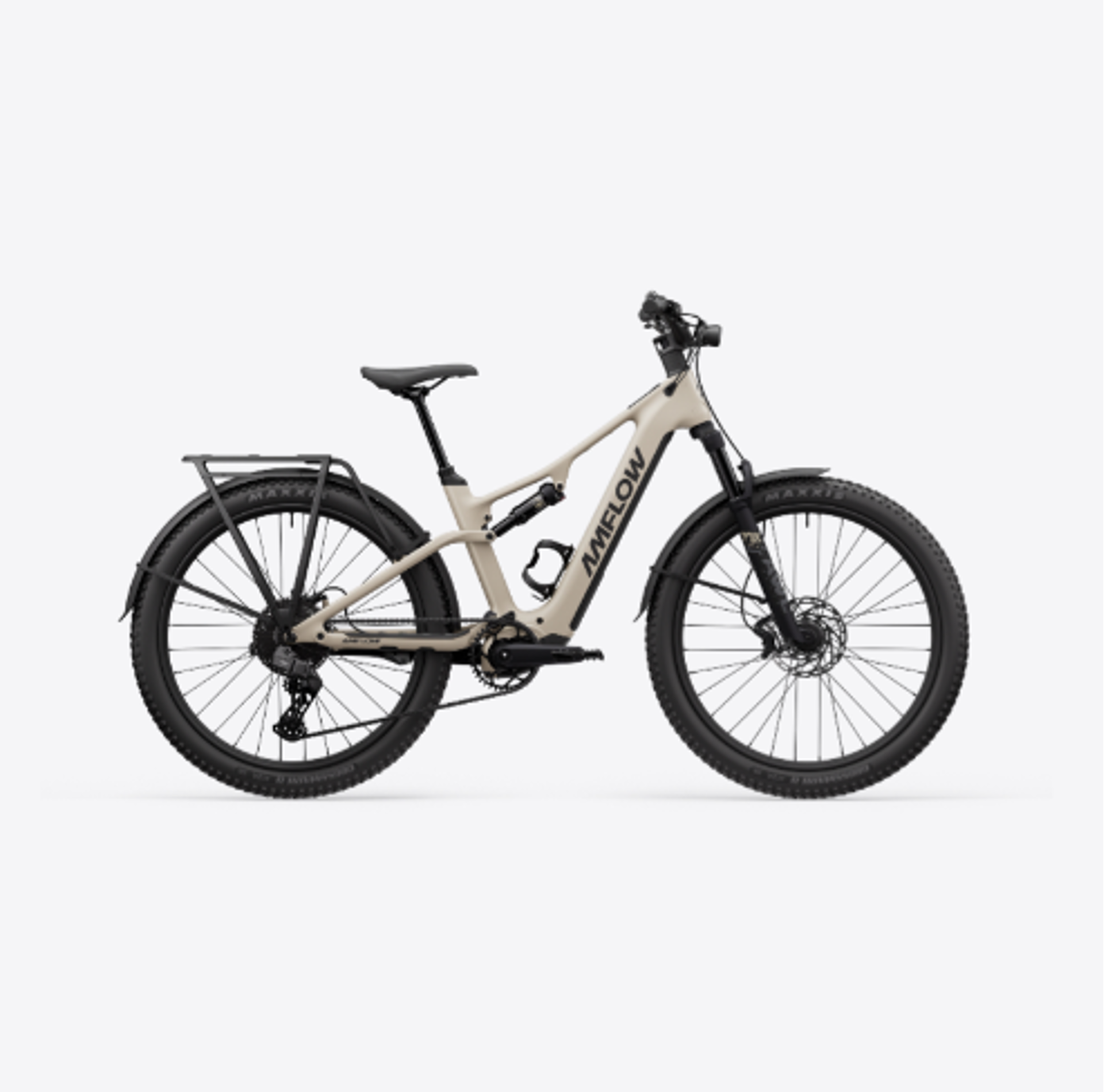

Amflow TL Carbon 2026 Beige

£3,199.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

....

RETURNS FREQUENTLY ASKED QUESTIONS

Please refer to TERMS AND CONDITIONS for full policy.

Can I return an unwanted item?

We feel that you should be totally satisfied with your purchase from True North Cycle Hub, If, however, you wish to return an item as unwanted you can return it within 14 days from the date you receive the product. Please note that we require you to contact us by email and quote your invoice/receipt number and reasons for return prior to sending the item back. Please see below for important details on the condition of an unwanted item return.

The cost of the item will be refunded, but any initial delivery costs will not be refunded. Return costs are payable by customer, also see courier collections.

Condition of return.

If you want to return an unwanted item, the item must be as priority unused, in its original condition and suitable for resale (the items must be in an “as new” condition and in the original packaging including labels, stickers, additional accessories etc.). If reasonable care has not been taken of the item prior to our receipt, resulting in damage or deterioration of the goods or packaging then a charge will be applied for the reduction in value. The item must be accompanied by the invoice/receipt with details of the reason for return stated. You are responsible for the item until it reaches us; we, therefore, suggest that you use a secure method of delivery e.g. signed delivery. The customer is responsible for any delivery charges incurred for the return of an unwanted item. Remember, all packaging must be undamaged so please do not tape up packaging or write on it as this will make it unacceptable, this particularly applies to any boxed item, the box must not be used as external packaging!

Incorrectly delivered items.

Should in the unlikely event that we send a wrong item we will, at our expense, arrange a collection or supply a pre paid postage label to enable you to return the incorrect item to us. Once we have received the item back we will issue you a replacement item.

Damaged in transit.

Please check your purchase upon arrival. If you notice any damage to the packaging please sign for it as damaged and notify us within 24 hours. Please email to info@truenorthcyclehub.co.uk photographs and description of the damage. Once accepted we will arrange a collection or supply a pre paid postage label to you to enable you to return the damaged item. Once we have received the item back we will issue you a replacement item should a replacement be available.

When will I receive a refund?

The customer can expect to receive the refund of the cost for the item within two weeks of us receiving the item (assuming satisfaction with the condition of the product).

For information on how to process a WARRANTY CLAIM please refer to our WARRANTY POLICY.

Amflow TL Carbon 2026 Beige

Brand:Amflow

Code:69798718104

Technical Information

Frame

Amflow TL Carbon Frame

Silica Beige

Full Suspension, Removable Battery, Compatible With 27.5″ and 29″ Front and Rear Wheels

Compatible With Front and Rear Mudguards

Compatible With Rear Rack and Front Rack

Compatible With Bike Trailers (Requires Trailer Thru-Axle)

Drive System

Avinox M2 Drive Unit: Nominal 110N·m, Peak 125N·m

Screen: Avinox DPC100, 2-inch OLED Control Display

Battery: Avinox RS800 Battery (Removable)

Wireless Controllers: Avinox Wireless Controller × 2 (One on each side of the handlebar)

Charger: Avinox 4A Charger, 168W Output

Rear Shock

FOX FLOAT Rhythm, LSR adjustment, Amflow TL tuned, 190×45mm

Fork

FOX AWL Sport, 120mm, RAIL 2.0 damper, LSR adjustment, 15×110mm Kabolt, 44mm offset

Drivetrain

Rear Derailleur: TRP E.A.S.I. RD-T7010E-L, 10/11-Speed, Electronic Rear Derailleur

Cassette: CS-M5243, 10-Speed, 11-43T

Chainring: Avinox Direct Mount Chainring (38T)

Chain: Avinox eGlide T Chain (10S/11S, 118 Links)

Crankset: Avinox SL Crankset (S/M: 155mm; L/XL: 160mm)

Brakes

Tektro TKD173 Hydraulic Disc Brakes, 4-Piston Caliper, Customized for Amflow

Tektro TR180-61E, Ø180mm, 2.3mm thickness, with integrated tonewheel for Avinox

Wheels

Front Wheel:

Amflow HTA-25 Front Wheel (27.5″)

Tires: Maxxis 27.5×2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI

Rim: Alloy, 27.5″, 25mm Inner Width, 32H

Hub: Alloy, 15×110mm Thru-Axle, 32H, 6-bolt



Rear Wheel:

Amflow HTA-25 Rear Wheel (27.5″)

Tires: Maxxis 27.5×2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI

Rim: Alloy, 27.5″, 25mm Inner Width, 32H

Hub: Alloy, 12×148mm Thru-Axle, 32H, 6-bolt, 6 Pawls, HG Freehub

Tires

Maxxis 27.5×2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI

Handlebar

Amflow Touring Handlebar

S/M Size Frame: 720mmWidth, 35mm Diameter, 93mm Rise

L/XL Size Frame: 740mmWidth, 35mm Diameter, 93mm Rise

Grips

Amflow Enduro Grip 2

Stem

Amflow Touring Bike Split Stem (Clamping Diameter: 35mm, Length: 35mm, Angle: 0°)

Saddle

Amflow Touring Saddle

Dropper Post

Amflow TA Dropper Post, 31.6mm (Adjustable Travel: 0/-10/-20mm)

S/M Size Frame: 150mm

L/XL Size Frame: 170mm

Accessories

Avinox Front Light

Amflow Touring Rear Rack,Compatible With MIK HD Standard

Amflow Elite MTB Pedals

Amflow Bottle Cage

Front Mudguard, Rear Mudguard

Amflow Touring Kickstand (348mm)

Amflow Touring Bike Split Stem(ClampingDiameter: 35mm, Length: 35mm, Angle: 0°)

Sate-lite M8 Rear Light With Integrated Reflector

Dropper Post Travel Reducing Spacer

Two Keys for Removable Battery

Torque Wrench

Sizing Information
SizeHeight (cm)Height (inch)
S&M155 - 1755'1 - 5'8''
L&XL175 - 1905'8 - 6'3''


Geometry
SMLXL
AReach375.3mm375.3mm412.7mm412.7mm
BStack Height628.4mm628.4mm653.9mm653.9mm
CStandover Height750.5mm750.5mm755.3mm755.3mm
DFront Center674mm674mm722mm722mm
EFork Length545mm545mm545mm545mm
FWheelbase1144mm1144mm1192mm1192mm
GChainstay Length470mm470mm470mm470mm
HBottom Bracket Drop32mm32mm32mm32mm
IBottom Bracket Height328mm328mm328mm328mm
JEffective Top Tube Length603.2mm603.2mm651mm651mm
KHead Tube Angle66.9°66.9°66.9°66.9°
LHead Tube Length120mm120mm148mm148mm
MActual Seat Tube Angle67.8°67.8°67.8°67.8°
NEffective Seat Tube Angle70°70°70°70°
OSeat Tube Height412.8mm412.8mm447.6mm447.6mm
PEffective Reach309.8mm324.9mm347.2mm362.3mm
QEffective Stack775.73mm797.33mm801.23mm822.83mm
